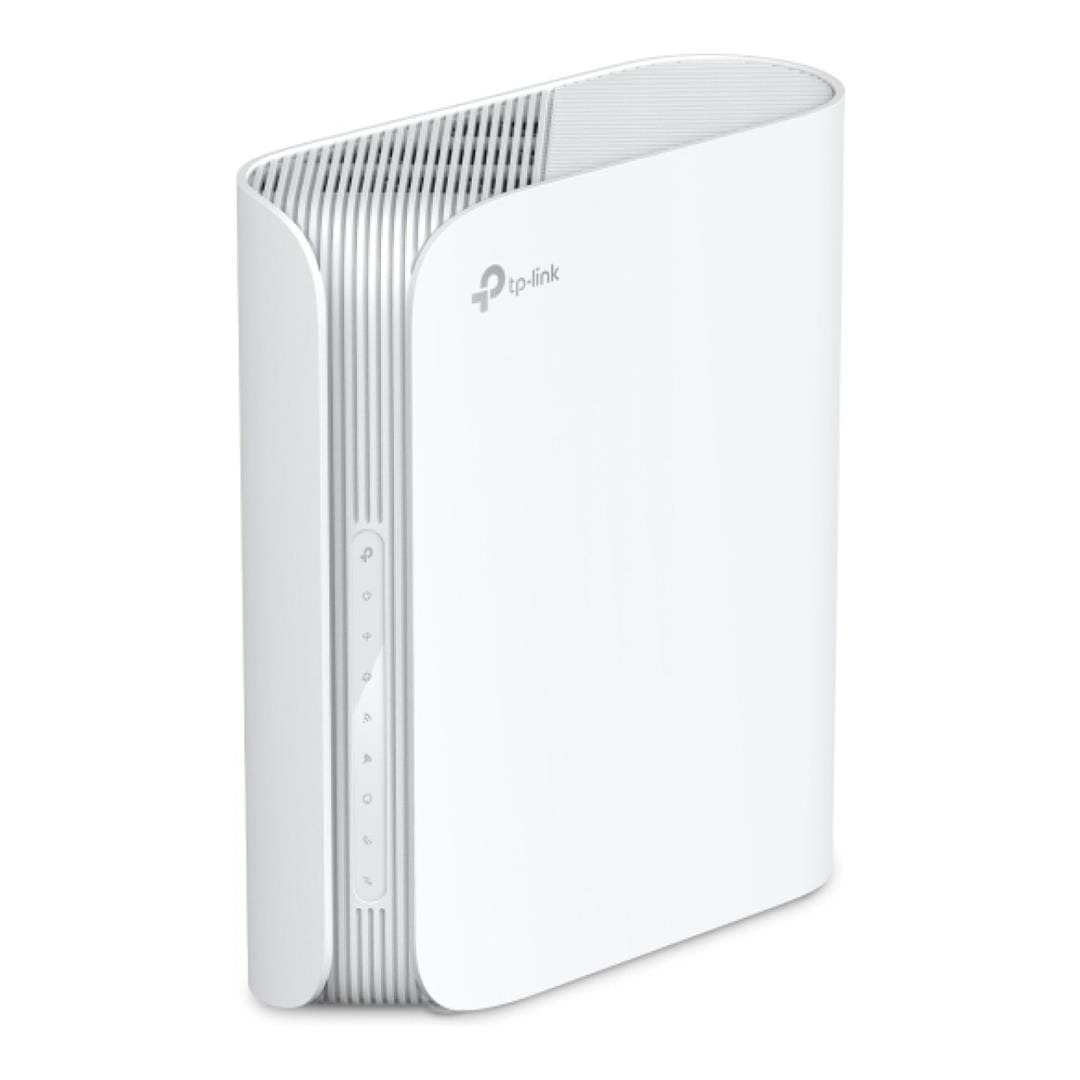

TP-Link XGB430v Pro BE7200 Wi-Fi 7 XGS-PON Router - Dual-band 2.4GHz and 5GHz Gigabit Ethernet

TP-Link XGB430v Pro BE7200 Wi-Fi 7 XGS-PON Router - Dual-band 2.4GHz and 5GHz Gigabit Ethernet

nn

Revolutionize Your WiFi Experience with WiFi 7

nn

WiFi 7 has arrived with unprecedented performance—offering accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the league of pros and experience the sheer performance of the next generation of WiFi.

nn

Features:

nn

n
• 7.2 Gbps Dual Band WiFi 7: 8-stream dual band WiFi enables gaming, streaming, and high-speed downloading on multiple devices—all at the same time.*

n

• Multi-Link Operation (MLO): Achieve higher throughput for each device with lower latency and higher reliability via multi-link aggregation across two bands.

n

• Symmetrical 10G Connectivity: XGS-PON technology delivers up to 10 Gbps of upstream and downstream transmissions simultaneously.

n

• Versatile Internet Access: Supports direct fiber access, Ethernet connections via modem, and 3G/4G internet services through the USB port.

n

• Boosted Coverage: High-performance antennas and beamforming technology combine to extend strong, reliable WiFi throughout your home.

n

• More Connections: OFDMA and MU-MIMO technologies increase capacity and enable simultaneous transmission to more devices.

n

• EasyMesh-Compatible: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.

n

• VoIP Calls: Supports multiple VoIP accounts and various call features to surpass traditional landlines.

n

• Enhanced Security: WPA3 encryption, Multi-SSID, and parental controls provide personalized and safer online experiences.

n

• Easy Setup and Use: Simplifies network and WiFi control and management via the Aginet app.

n

• Remote Management: Supports TAUC (TP-Link Aginet Unified Cloud, based on TR-369) along with OMCI, TR-069, TR-098, TR-181, TR-111, and TR-143 protocols.

n

nn

7.2 Gbps Dual Band WiFi 7

nn

Both 2.4 GHz and 5 GHz bands are upgraded to the latest WiFi technology with faster speeds and higher efficiency, ensuring a smoother experience for all applications. Enjoy fluent 4K/8K streaming, immersive gaming, and blazing-fast downloads.

nn

10G Symmetrical Internet Access and Wired Connectivity

nn

Equipped with an XGS-PON and a 10 GbE WAN/LAN port, XGB430v Pro delivers 10 Gbps internet for fiber and Ethernet connections, meeting your high-bandwidth needs. Multiple gigabit LAN ports boost network flexibility, while the USB 3.0 port enables fast file sharing or serves as a 3G/4G dongle backup to keep you connected.

nn

Extensive WiFi Coverage and Stronger Signals

nn

Beamforming Technology

nn

Beamforming technology and high-performance antennas combine to adapt WiFi coverage to perfectly fit your home and concentrate signal strength towards every device.

nn

Beamforming

nn

4T5R Antenna Architecture for Optimized Connections

nn

Engineered with a 4T5R (4 transmitters, +5 receivers) antenna architecture, XGB430v Pro delivers stronger signals and higher throughput on the 5 GHz band with high sensitivity.

nn

More Connections,
nNo More Buffering

nn

Enhanced by WiFi 7 and featuring OFDMA, Multi-link operation (MLO), and MU-MIMO, you can connect 200+ devices simultaneously to build a fully connected home. Enjoy a more efficient network that loads faster without dragging down performance.

nn

Smart Mesh WiFi with Greater Flexibility

nn

Create a unified mesh WiFi network with other EasyMesh-compatible routers or mesh APs for seamless whole home coverage.

nn

Convenient VoIP Calls over the Internet

nn

XGB430v Pro also integrates a high-performance phone system. You can connect your analog phone to the router with voicemail storage and various VoIP call features, such as caller ID, call waiting, call holding and call forwarding to surpass traditional landlines.

nn

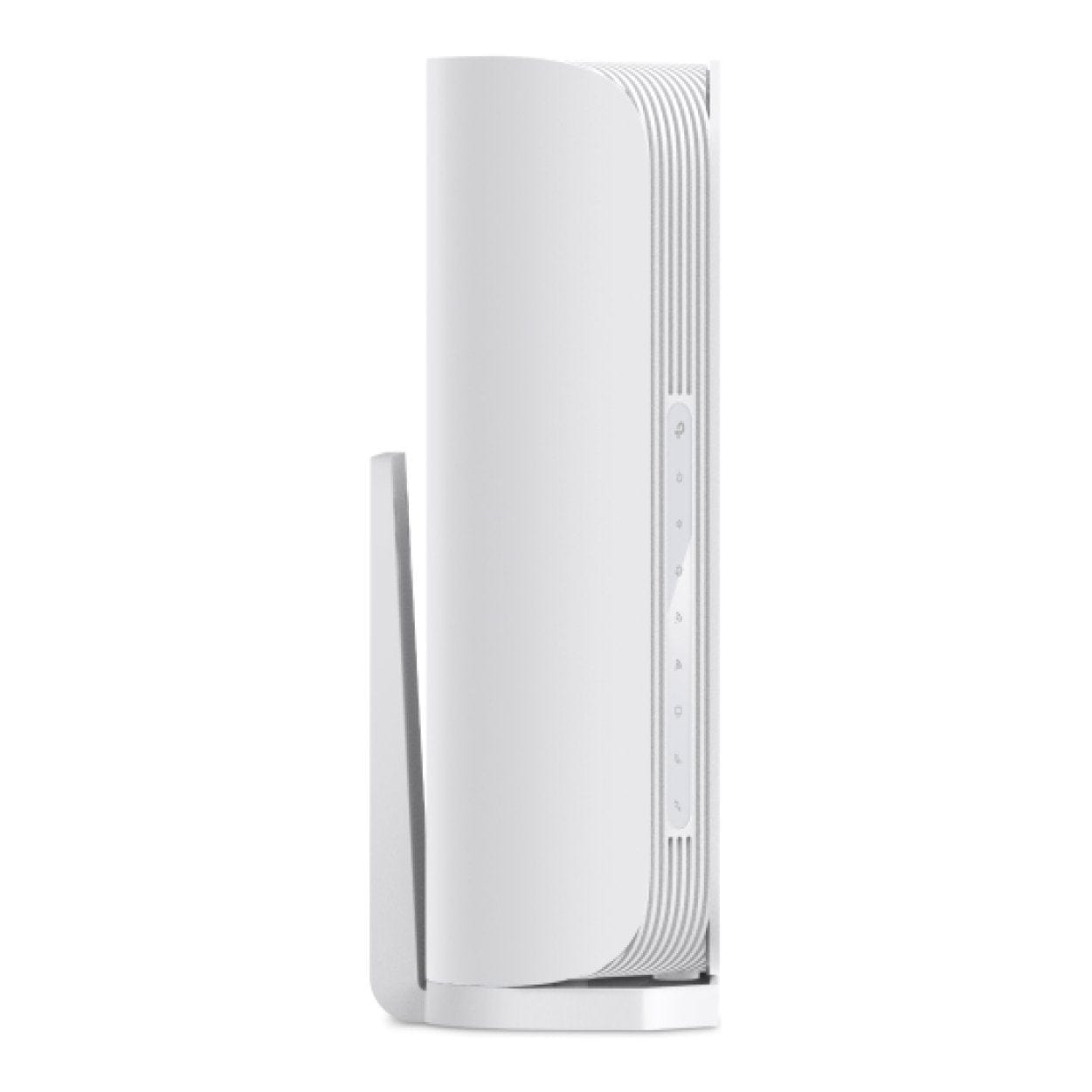

Optional Wall Mounting

nn

With a sleek, flat design, this router can be wall-mounted in your home office, living room, or hallway to suit your needs, whether to save space or fit your décor.

nn

Crafted with Care for the Planet We All Share

nn

Designed with sustainability at its core, XGB430v Pro reduces its carbon footprint by using 100% recycled plastics for its housing, fully recyclable paper, and vegetable-based ink for packaging.

nn

Centralized Remote Management

nn

Service providers can configure and manage devices remotely using ACS (Auto-Configuration Server, TR-369/069) or OMCI (ONU Management Control Interface) protocols. Compatibility with TR-181, TR-111, and TR-143 ensures advanced operations, enhancing service efficiency for home users.

nn

Technical Specifications:

nn

Hardware Features
nExternal Power Supply: 12V/2.5A

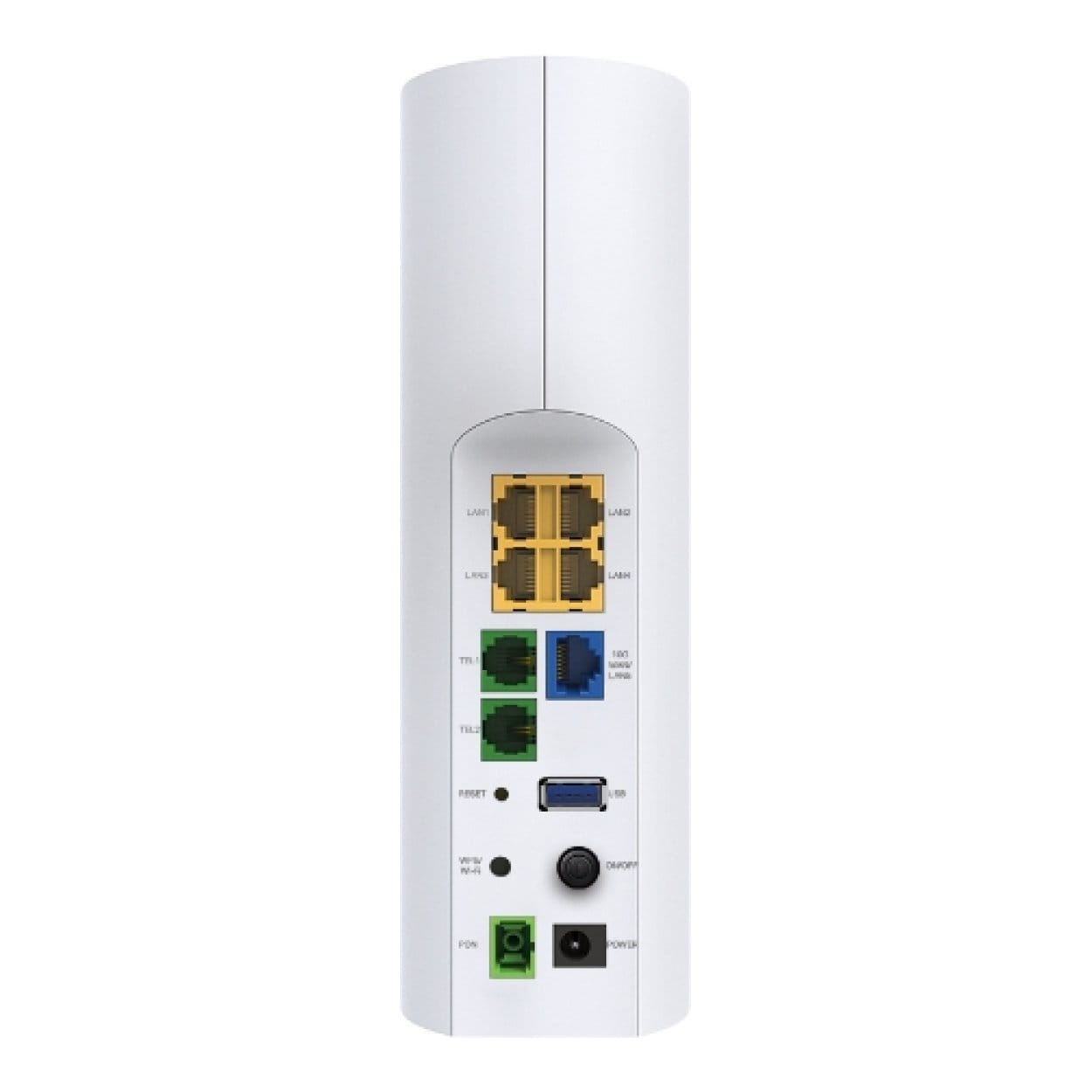

nInterface: 1× XGS-PON Port, 1× 10 GbE WAN/LAN Port, 4× GbE LAN Ports, 2× Phone Ports, 1× USB 3.0 Port
nButtons: WPS/Wi-Fi Button, Reset Button, Power On/Off Button
nAntenna: 4× Internal Dual-Band Antennas, 1× Internal 5G Antenna, 1× Internal DFS Dual-Band Antenna
nData Rates: Downstream 9.953 Gbps (XGS-PON), Upstream 9.953 Gbps (XGS-PON)‡
nDimensions (W × D × H): 189 × 70 × 218 mm (7.44 × 2.76 × 8.58 in)

nn

Wireless Features
nFrequency: 2.4 GHz and 5 GHz
nSignal Rate: BE7200 — 5 GHz: up to 5760 Mbps (EHT160), 2.4 GHz: up to 1376 Mbps (EHT40)*
nWireless Functions: Enable/Disable Wireless Radio, WMM, Wireless Statistics
nWireless Security: WPA/WPA2/WPA3 Encryptions
nWireless Standards: IEEE 802.11be/ax/ac/n/a (5 GHz), IEEE 802.11be/ax/n/g/b (2.4 GHz)
nTransmission Power (CE): <20 dBm (2.4 GHz), <23 dBm (5 GHz)
nMulti-SSID: 2× 5 GHz, 2× 2.4 GHz
nWireless Schedule: Supports 2.4 GHz and 5 GHz scheduling
nMesh Technology: EasyMesh compatible, supports 802.11k/v/r

nn

Software Features
nDHCP: Server, Client, DHCP Client List, Address Reservation, DHCP Relay
nPort Forwarding: Virtual Server, Port Triggering, DMZ, ALG, UPnP
nQuality of Service: Hardware QoS, Flow Classification
nDynamic DNS: DynDns, NO-IP
nVPN Pass-Through: PPTP, L2TP, IPSec
nManagement Features:

nn

Local: WebGUI, Aginet App (for end users)

nn

Remote: Aginet ACS, OMCI, TR-069/TR-369, TR-098, TR-181, TR-111, TR-143 (for service providers)

nn

Cloud: TP-Link Aginet Unified Cloud (TAUC)
nSecurity: NAT Firewall, Access Control, MAC/IP/URL Filtering, IP & MAC Binding, DoS Defense (SYN Flood, Ping of Death)
nAdvanced Features: Multi-Link Operation (MLO), Zero-Wait DFS, 4K-QAM, Multi-RU, OFDMA, Beamforming, BSS Color, NAT, Port Mapping, Static Routing, DNS Relay, DDNS, IGMP V1/V2/V3, Parental Controls, WiFi Schedule, Guest Network, Band Steering, Airtime Fairness, Network Diagnostics, Traffic Statistics
nProtocols: IPv4, IPv6
nVPN Server: PPTP, IPSec, OpenVPN

nn

Others
nPackage Contents: XGB430v Pro Unit, RJ45 Ethernet Cable, Power Adapter, Quick Installation Guide
nEnvironment:

nn

n
• Operating Temperature: 0°C–40°C (32°F–104°F)

n

• Storage Temperature: -40°C–60°C (-40°F–140°F)

n

• Operating Humidity: 10%–90% (non-condensing)

n

• Storage Humidity: 5%–90% (non-condensing)

n

n
