TP-Link AC1200 Wireless MU-MIMO Outdoor Gigabit Access Point

TP-Link EAP225-Outdoor 1200 Mbit/s Power over Ethernet (PoE) White

AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point

Features:

• Seamless 1.2 Gbps Wi-Fi Speeds: 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz.
• Dual-Band Omnidirectional Coverage: Up to 300 m (984 ft) long-range coverage.
• PoE Support: Support both standard 802.3af and Passive PoE (PoE adapter included) for flexible installations.
• Ideal for Outdoor Environments: IP65 weatherproof, 6 kV lightning protection, and a reliable operating range of -40 °C to +70 °C.
• Easy and Quick Setup: Wall/pole mounting; Omada SDN for one-click setup.
• Advanced Features: Omada Mesh, Seamless Roaming, and Centralized Cloud Management.

Excellent Hardware Designs

With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.

Detachable Antennas

EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.

Wi-Fi That Goes the Distance

With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+* at 2.4GHz and 300m+* at 5GHz in outdoor settings.

Specially Designed Weatherproof Enclosure for

Outdoor Environment

Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.

Efficient Centralized Network Management

With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It’s network management as it should be - efficient and intuitive.

Technical Specifications:

Hardware Features

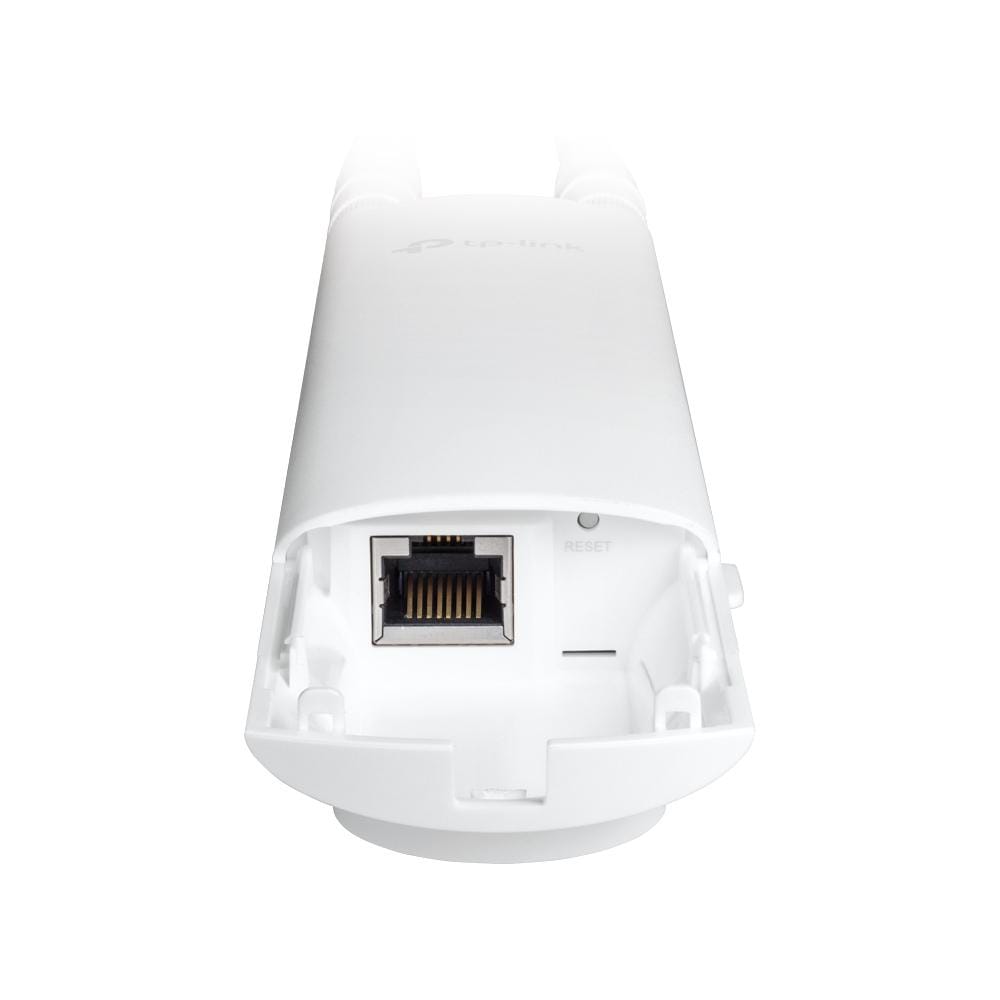

Interface: 1× Gigabit Ethernet (RJ-45) Port (Support 802.3af/at PoE (Alternative A) and Passive PoE)
Button: Reset
Power Supply: 802.3af PoE, 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included - For Dry Indoor Use Only)
Max. Power Consumption: 10.5W
Dimensions (W x D x H): 1.8 × 1.1 × 8.5 in (46 × 26.7 × 214.9 mm) (without antenna & mounting kit)
Antenna: 2 Dual-Band Omni Antennas (External Detachable)

• 2.4 GHz: 2× 3 dBi
• 5 GHz: 2× 5 dBi

Weatherproof Enclosure: IP65
Mounting: Pole/Wall Mounting (Kits included)

Wireless Features
Wireless Standards: IEEE 802.11a/b/g/n/ac
Frequency: 2.4GHz, 5GHz
Signal Rate:

• 802.11ac: 6.5 Mbps to 867 Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80)
• 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT 20/40)
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Wireless Functions: Multiple SSIDs (Up to 16 SSIDs, 8 for each band), Enable/Disable Wireless Radio, Automatic Channel Assignment, Transmit Power Control (Adjust Transmit Power on dBm), QoS(WMM), MU-MIMO, Seamless Roaming(802.11k/v/r), Omada Mesh, Airtime Fairness, Beamforming, Band Steering, Load Balance, Rate Limit, Reboot Schedule, Wireless Schedule, Wireless Statistics based on SSID/AP/Client
Wireless Security: Captive Portal Authentication*, Access Control, Wireless Mac Address Filtering, Wireless Isolation Between Clients, SSID to VLAN Mapping, Rogue AP Detection, 802.1X Support
Transmission Power: CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP); FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz)

Management Features
Omada App: Yes
Centralized Management: Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller
Cloud Access: Yes (Require the use of an Omada controller)
Email Alerts: Yes
Management MAC Access Control: Yes
SNMP: v1, v2c, v3
System Logging Local/Remote Syslog: Yes
SSH: Yes
Web-based Management: Yes
L3 Management: Yes
Multi-site Management: Yes
Management VLAN: Yes
Zero-Touch Provisioning: Yes (Requiring the use of Omada Cloud-Based Controller)

Others
Certification: CE, FCC, RoHS
System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

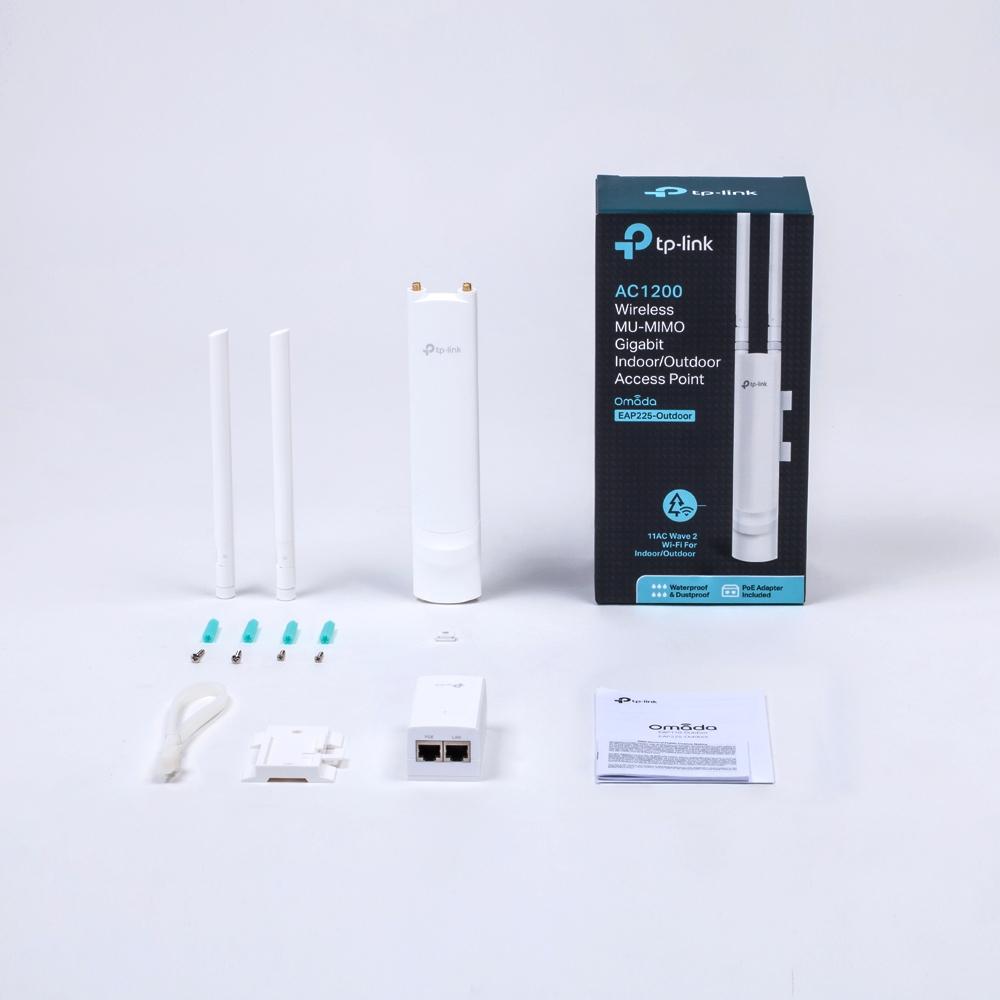

What’s in the Box:

• Access Point EAP225-Outdoor
• Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide
• Waterproof Rubber Insert
• Waterproof Antenna
