TP-Link EAP225-O Promotion: Buy 20 X EAP225-O And Get 1 Free OC200 TP-PROMO9

TP-Link EAP225-O Promotion: Buy 20 X EAP225-O And Get 1 Free OC200 TP-PROMO9

nn

This promotional offer includes twenty TP-Link EAP225-O Wi-Fi 6 access points. The bundle provides one free TP-Link OC200 Omada Controller. The EAP225-O supports dual-band operation with speeds up to 2.97 Gbps. It features MU-MIMO and OFDMA technology for efficient network management. The OC200 controller allows for centralised management of the access points via a web interface. This package is suitable for small to medium-sized businesses requiring reliable wireless coverage.

nn

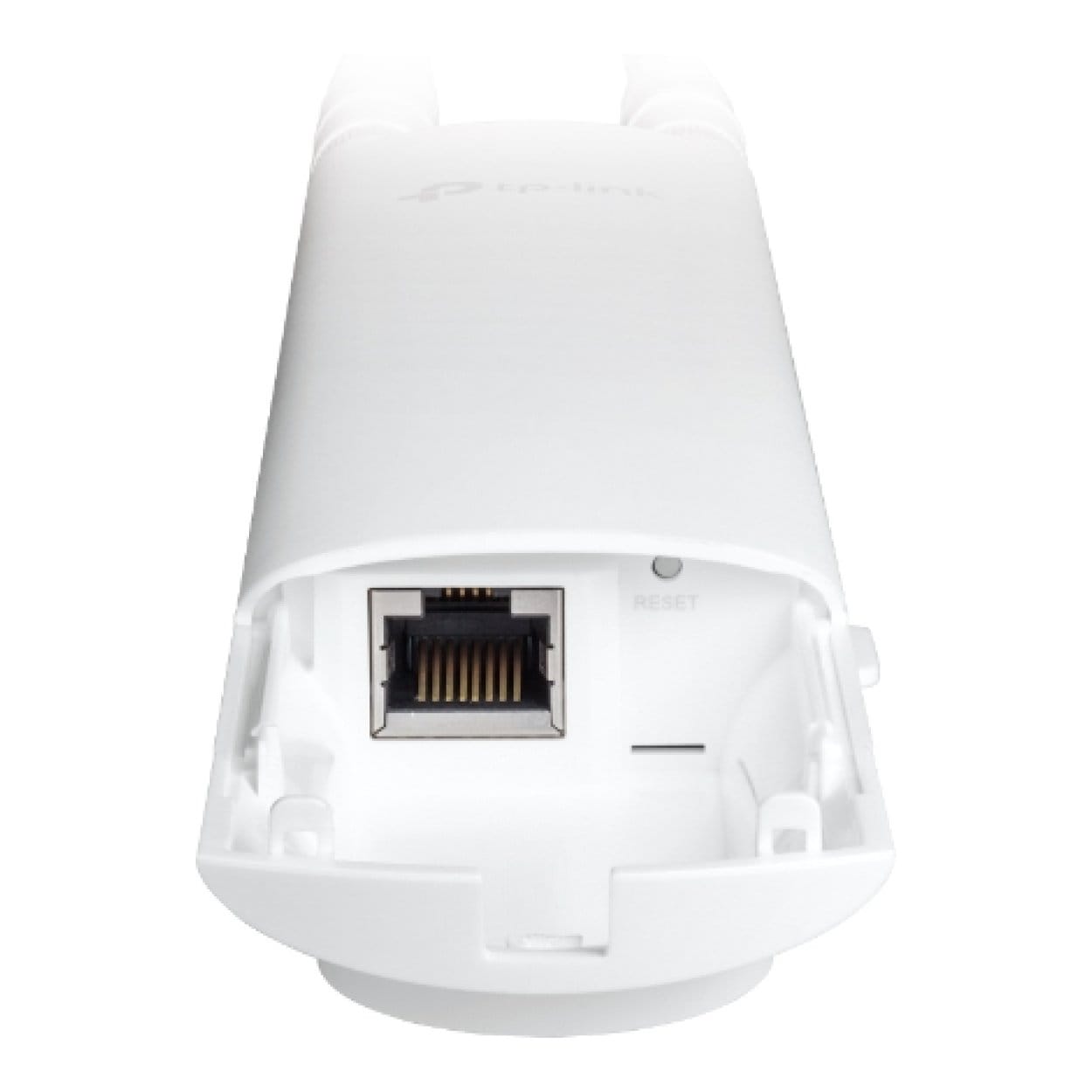

EAP225-Outdoor

nn

nn

Technical Specifications:

nn

Hardware Features
nInterface: 1x Gigabit Ethernet (RJ-45) Port (Supports 802.3af/at PoE (Alternative A) And Passive PoE)
nButton: Reset
nPower Supply:

nn

n
• 802.3af PoE

n

• 24V Passive PoE (+4,5 Pins; -7,8 Pins, PoE Adapter Included)
  n Max. Power Consumption: 10.5 W
  n Antenna: 2x Dual-Band Omni Antennas (External Detachable)

n

• 2.4 GHz: 2x 3 dBi

n

• 5 GHz: 2x 5 dBi
  n Weatherproof Enclosure: IP65
  n Mounting: Pole/Wall Mounting (Kits Included)

n

nn

Wireless Features
nWireless Standards: IEEE 802.11a/b/g/n/ac
nFrequency: 2.4 GHz, 5 GHz
nSignal Rate:

nn

n
• 802.11ac: 6.5 Mbps To 867 Mbps (MCS0–MCS9, NSS = 1 To 2, VHT20/40/80)

n

• 802.11n: 6.5 Mbps To 300 Mbps (MCS0–MCS15, HT20/40)

n

• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

n

• 802.11b: 1, 2, 5.5, 11 Mbps

n

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
  n Wireless Functions:

n

• Multiple SSIDs (Up To 16 SSIDs, 8 Per Band)

n

• Enable/Disable Wireless Radio

n

• Automatic Channel Assignment

n

• Transmit Power Control (Adjust Transmit Power In dBm)

n

• QoS (WMM)

n

• MU-MIMO

n

• Seamless Roaming*

n

• Omada Mesh*

n

• Airtime Fairness

n

• Beamforming

n

• Band Steering

n

• Load Balance

n

• Rate Limit

n

• Reboot Schedule

n

• Wireless Schedule

n

• Wireless Statistics Based On SSID/AP/Client
  n Wireless Security:

n

• Captive Portal Authentication*

n

• Access Control

n

• Wireless MAC Address Filtering

n

• Wireless Isolation Between Clients

n

• SSID To VLAN Mapping

n

• Rogue AP Detection

n

• 802.1X Support
  n Transmission Power:

n

• CE: <20 dBm (2.4 GHz, EIRP), <27 dBm (5 GHz, EIRP)

n

• FCC: <23 dBm (2.4 GHz), <22 dBm (5 GHz)

n

nn

Management Features
nOmada App: Yes
nCentralized Management:

nn

n
• Omada Cloud-Based Controller

n

• Omada Hardware Controller (OC300)

n

• Omada Hardware Controller (OC200)

n

• Omada Software Controller
  n Cloud Access: Yes (Requires OC300, OC200, Omada Cloud-Based Controller, Or Omada Software Controller)
  n Email Alerts: Yes
  n Management MAC Access Control: Yes
  n SNMP: v1, v2c, v3
  n System Logging: Local/Remote Syslog
  n SSH: Yes
  n Web-Based Management: Yes
  n L3 Management: Yes
  n Multi-Site Management: Yes
  n Management VLAN: Yes
  n Zero-Touch Provisioning: Yes (Requires Omada Cloud-Based Controller)

n

nn

Physical Specifications
nDimensions: 46 X 26.7 X 214.9 Mm

nn

Certifications
nCertifications: CE, FCC, RoHS

nn

System Requirements
nSystem Requirements:

nn

n
• Microsoft Windows XP

n

• Windows Vista

n

• Windows 7

n

• Windows 8

n

• Windows 10

n

• Windows 11

n

• Linux

n

nn

Environmental Conditions
nOperating Temperature: -30°C To 70°C
nStorage Temperature: -40°C To 70°C
nOperating Humidity: 10% To 90% RH (Non-Condensing)
nStorage Humidity: 5% To 90% RH (Non-Condensing)

nn

What's in the Box:

nn

n
• Access Point EAP225-Outdoor

n

• Passive PoE Adapter

n

• Power Cord

n

• Mounting Kits

n

• Installation Guide

n

• Waterproof Rubber Insert

n

• Waterproof Antenna

n

nn

nn

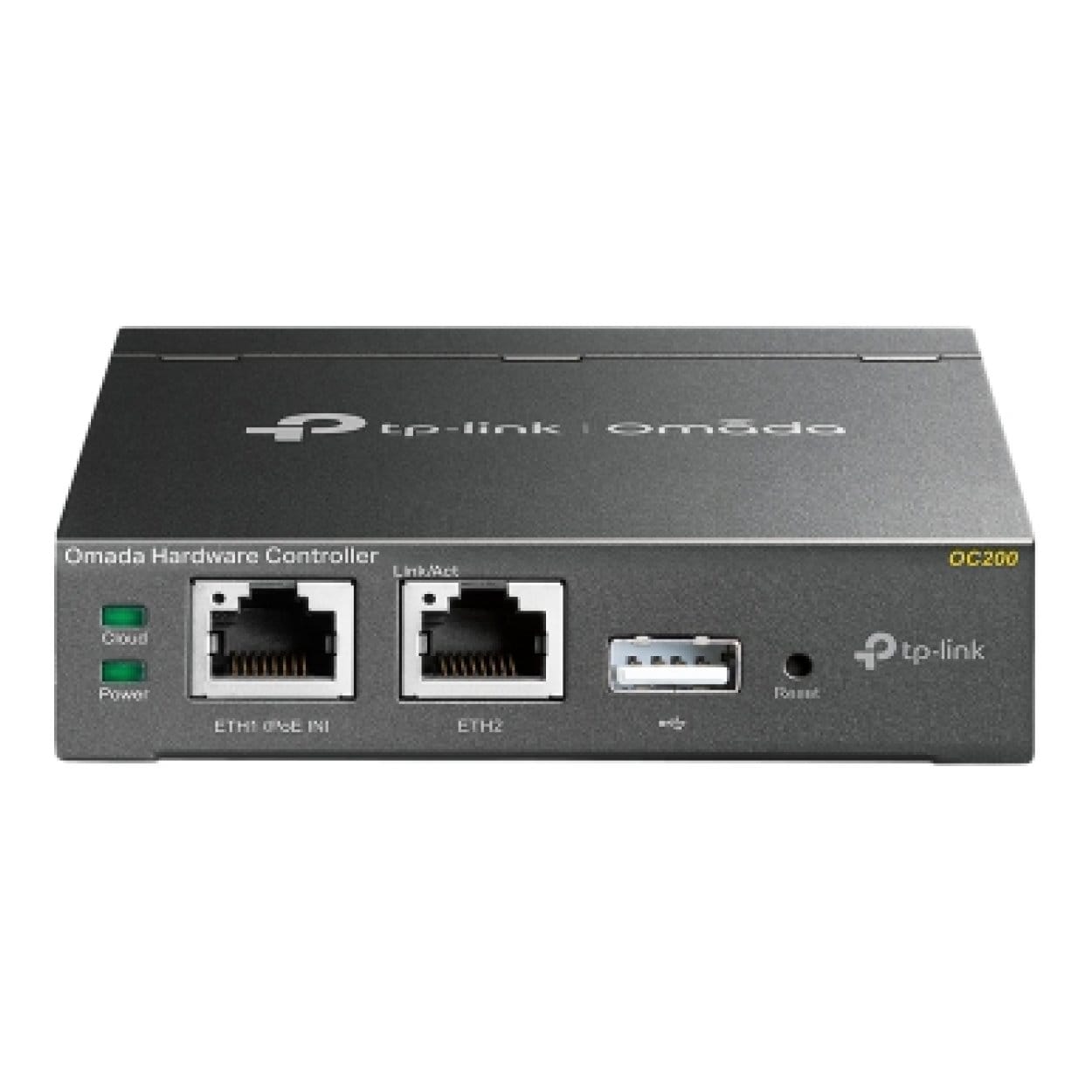

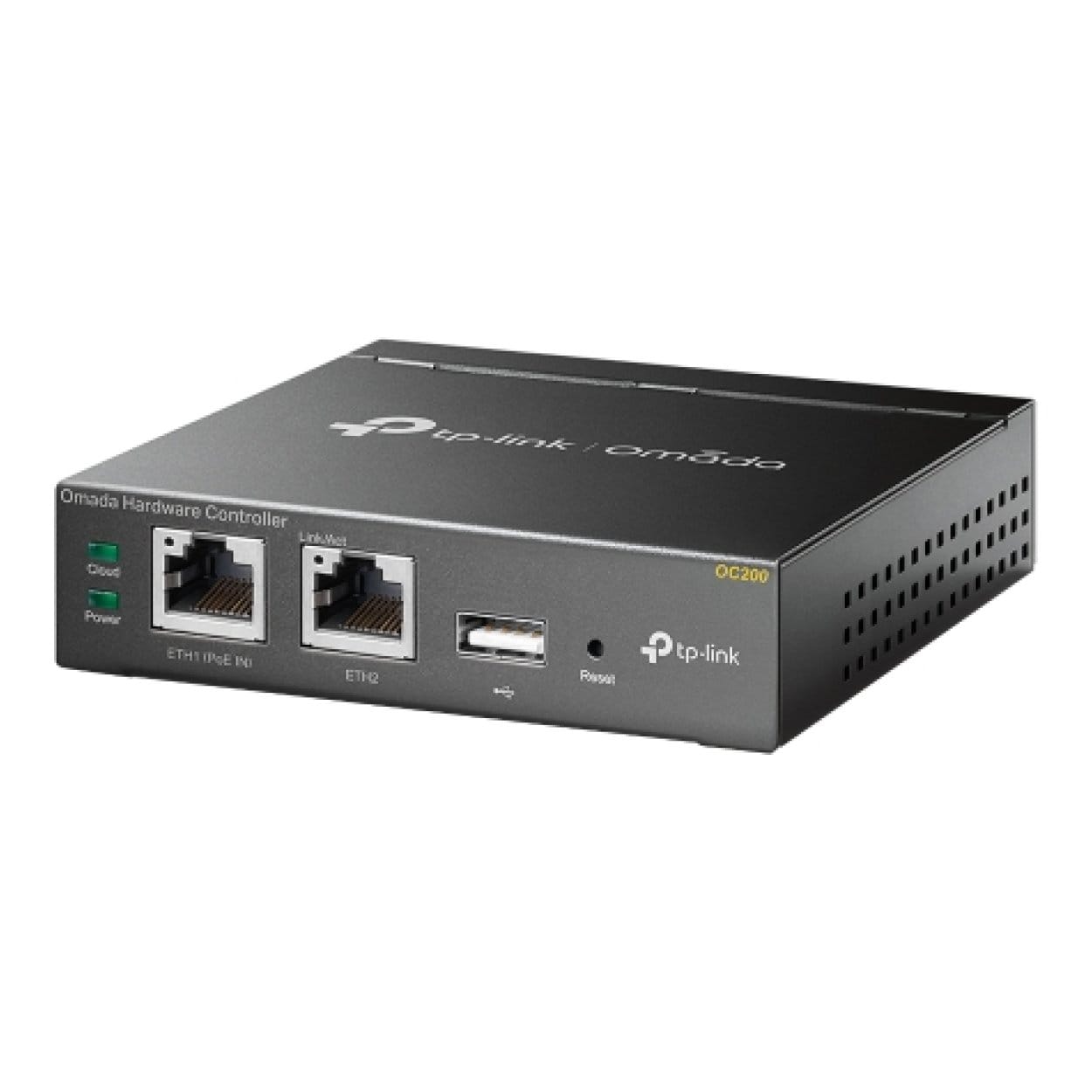

OC200

nn

nn

Technical Specifications:

nn

Hardware Features
nInterface:

nn

n
• 2x 10/100 Mbps Ethernet Ports

n

• 1x USB 2.0 Port

n

• 1x Micro USB Port
  n Power Supply: 802.3af/at PoE Or Micro USB (DC 5V, Minimum 1A)

n

nn

Features
nWireless Function:

nn

n
• L3 Management

n

• Multi-SSID

n

• Load Balance

n

• Band Steering

n

• Airtime Fairness

n

• Beamforming

n

• Rate Limit

n

• Wireless Schedule

n

• QoS
  n Wireless Security:

n

• Captive Portal Authentication

n

• Access Control

n

• Wireless MAC Address Filtering

n

• Wireless Isolation Between Clients

n

• SSID To VLAN Mapping

n

• Rogue AP Detection
  n AP Management:

n

• Automatic Discovery

n

• Unified Configuration

n

• Reboot Schedule

n

• Batch Firmware Upgrade

n

• LED On/Off
  n Authentication: Captive Portal

n

nn

Management Features
nOmada App: Yes
nCentralized Management:

nn

n
• Supports Up To 100 Omada Access Points

n

• Supports Up To 20 JetStream Switches

n

• Supports Up To 10 Omada Routers

n

• Supports Up To 1,000 Clients
  n Cloud Access: Yes
  n L3 Management: Yes
  n Multi-Site Management: Yes
  n Management Features:

n

• Automatic Device Discovery

n

• Batch Configuration

n

• Batch Firmware Upgrading

n

• Intelligent Network Monitoring

n

• Abnormal Event Warnings

n

• Unified Configuration

n

• Reboot Schedule

n

• Captive Portal Configuration

n

nn

Physical Specifications
nDimensions: 100 X 98 X 25 Mm

nn

Certifications
nCertifications: CE, FCC, RoHS

nn

System Requirements
nSystem Requirements:

nn

n
• Microsoft Windows 10

n

• Windows 8

n

• Windows 7

n

• Windows Vista

n

• Windows XP

n

• Mac OS

n

• NetWare

n

• UNIX

n

• Linux

n

nn

Environmental Conditions
nOperating Temperature: 0°C To 40°C
nStorage Temperature: -40°C To 70°C
nOperating Humidity: 10% To 90% (Non-Condensing)
nStorage Humidity: 5% To 90% (Non-Condensing)

nn

What's in the Box:

nn

n
• Omada Cloud Controller OC200

n

• Ethernet Cable

n

• Quick Installation Guide

n

n
