TP-Link EAP650 Promotion: Buy 10 X EAP650 And Get 1 Free OC200 TP-PROMO7

TP-Link EAP650 Promotion: Buy 10 X EAP650 And Get 1 Free OC200 TP-PROMO7

nn

This promotional offer includes ten TP-Link EAP650 Wi-Fi 6 access points. The bundle provides one free OC200 optical modem. The EAP650 supports high-density environments with MU-MIMO and OFDMA technology. It delivers reliable wireless coverage for large offices and public spaces. The OC200 modem connects to fibre optic networks for stable internet access. This package is suitable for businesses requiring scalable network infrastructure.

nn

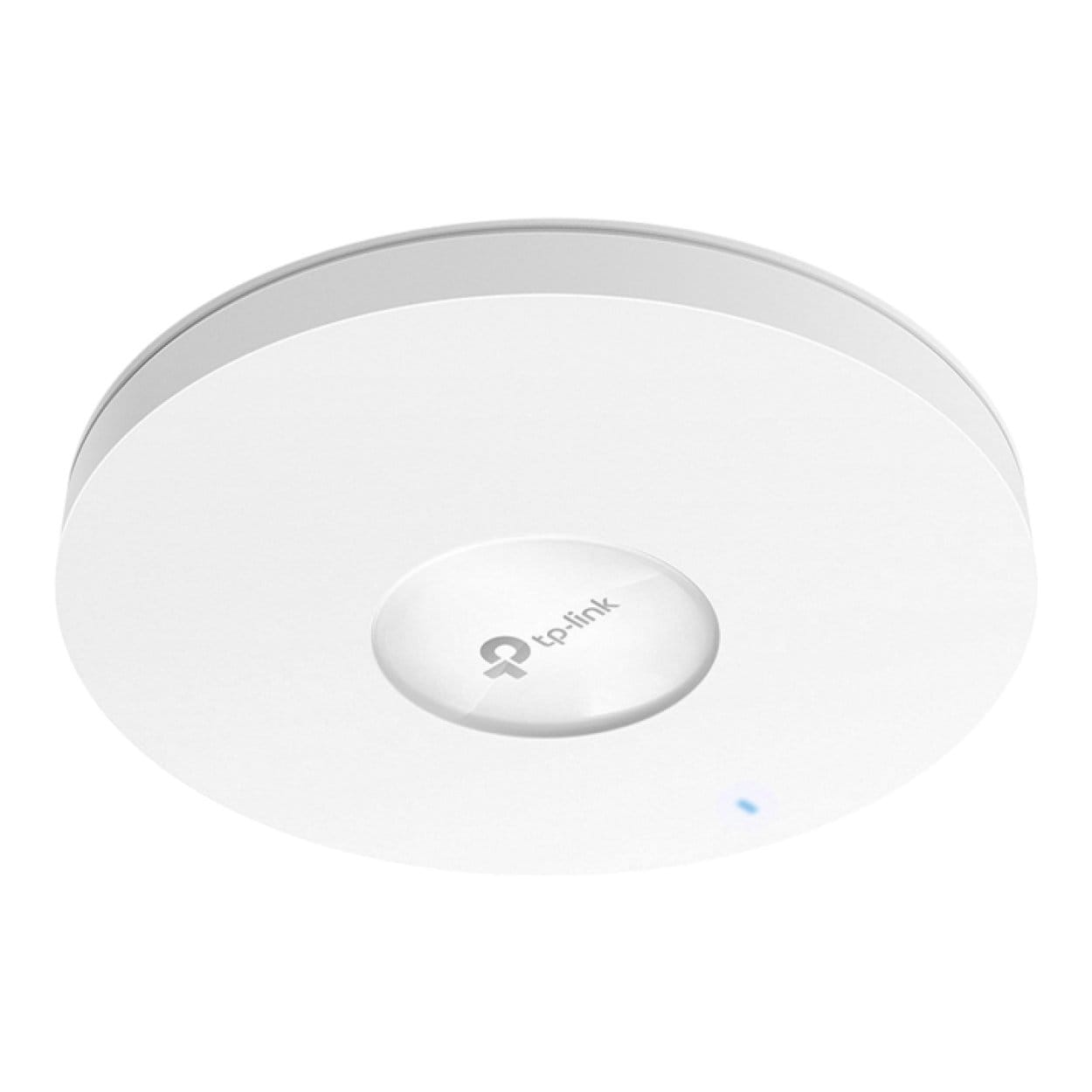

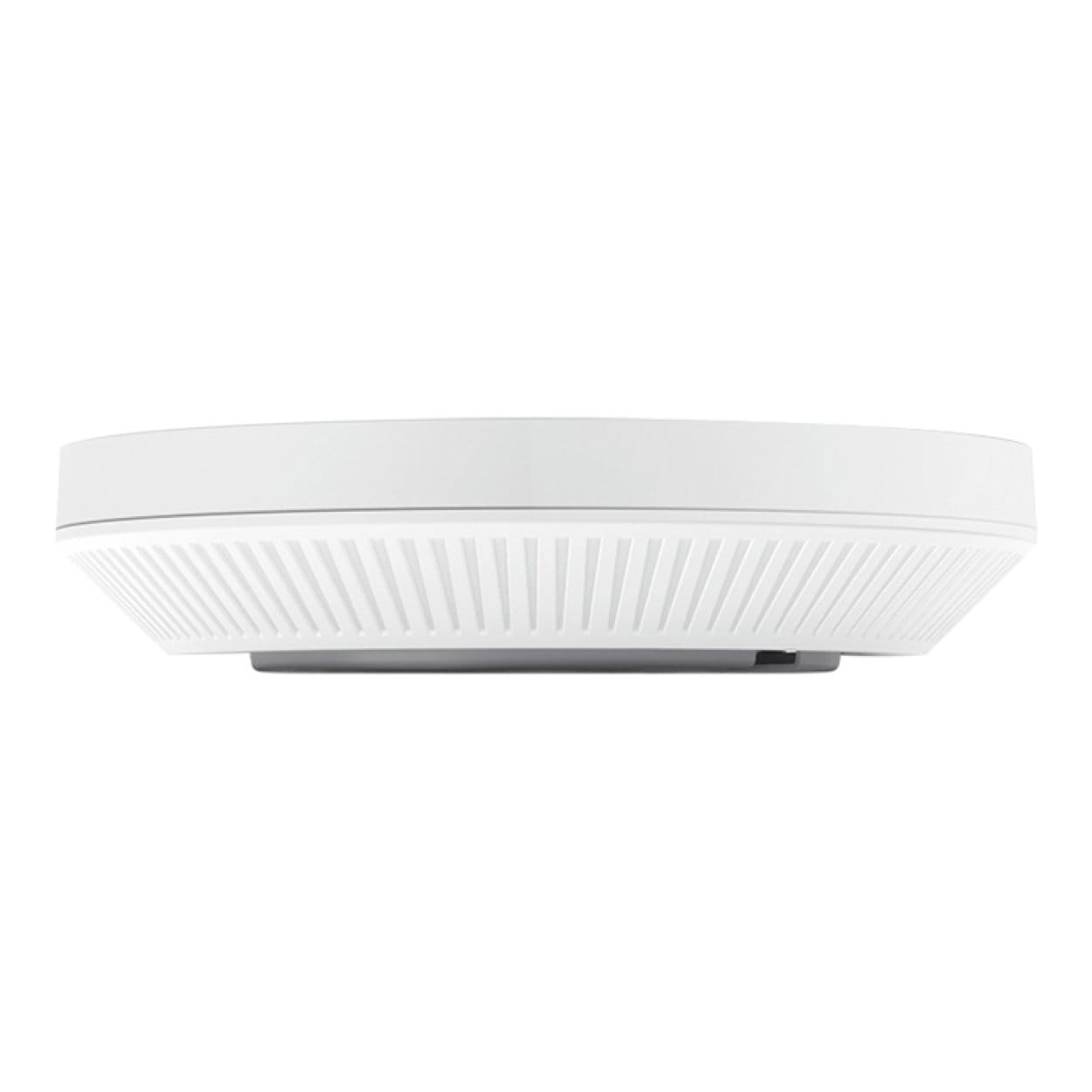

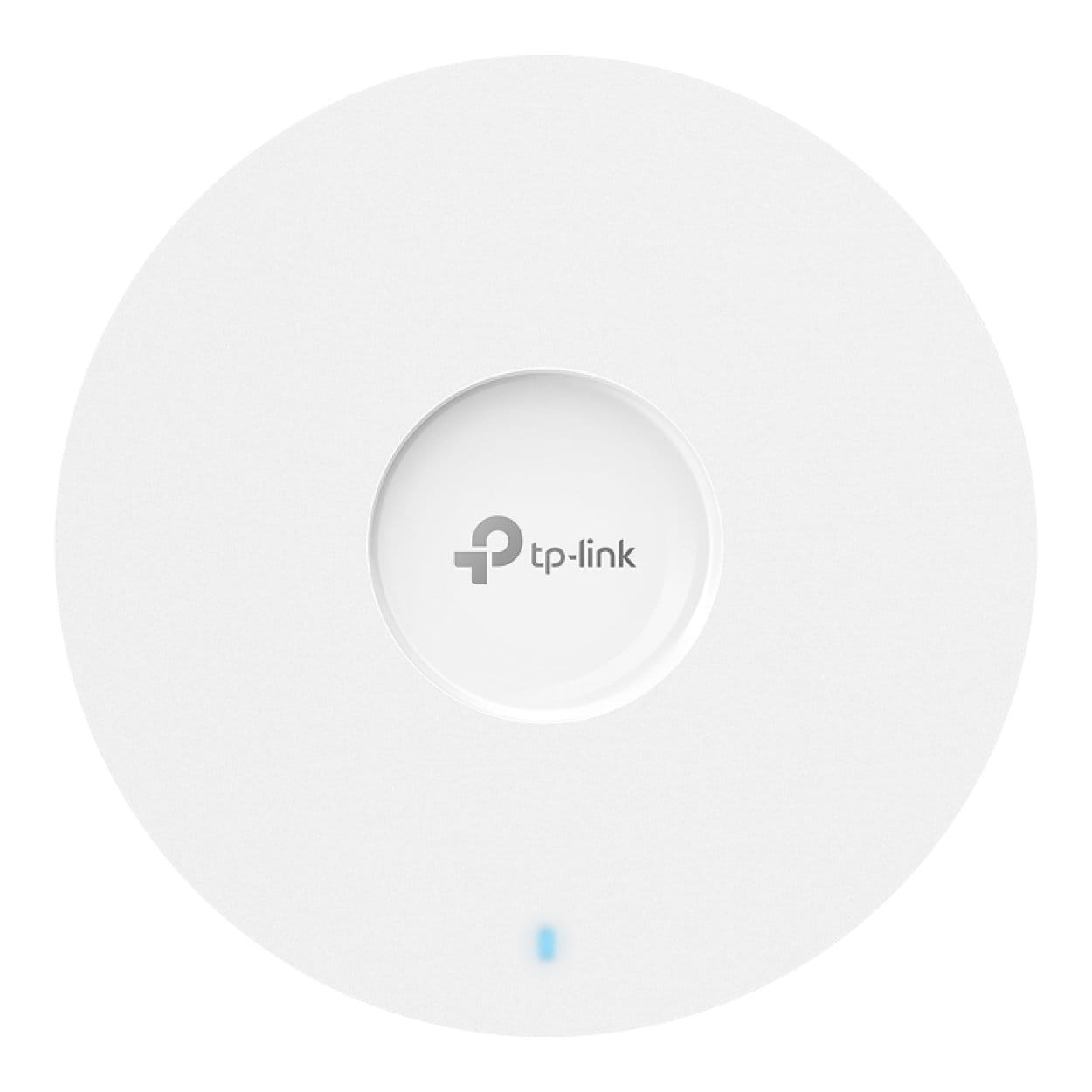

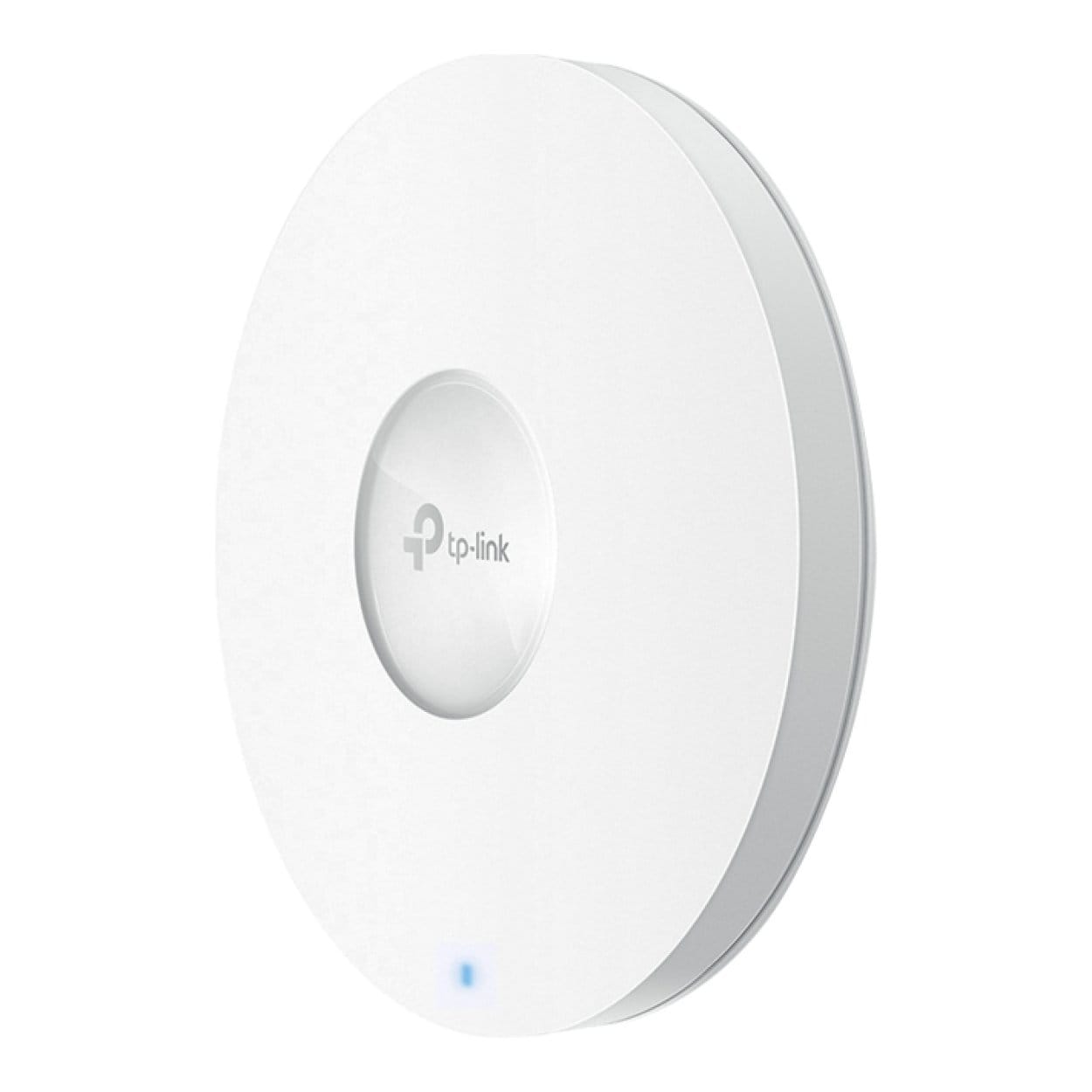

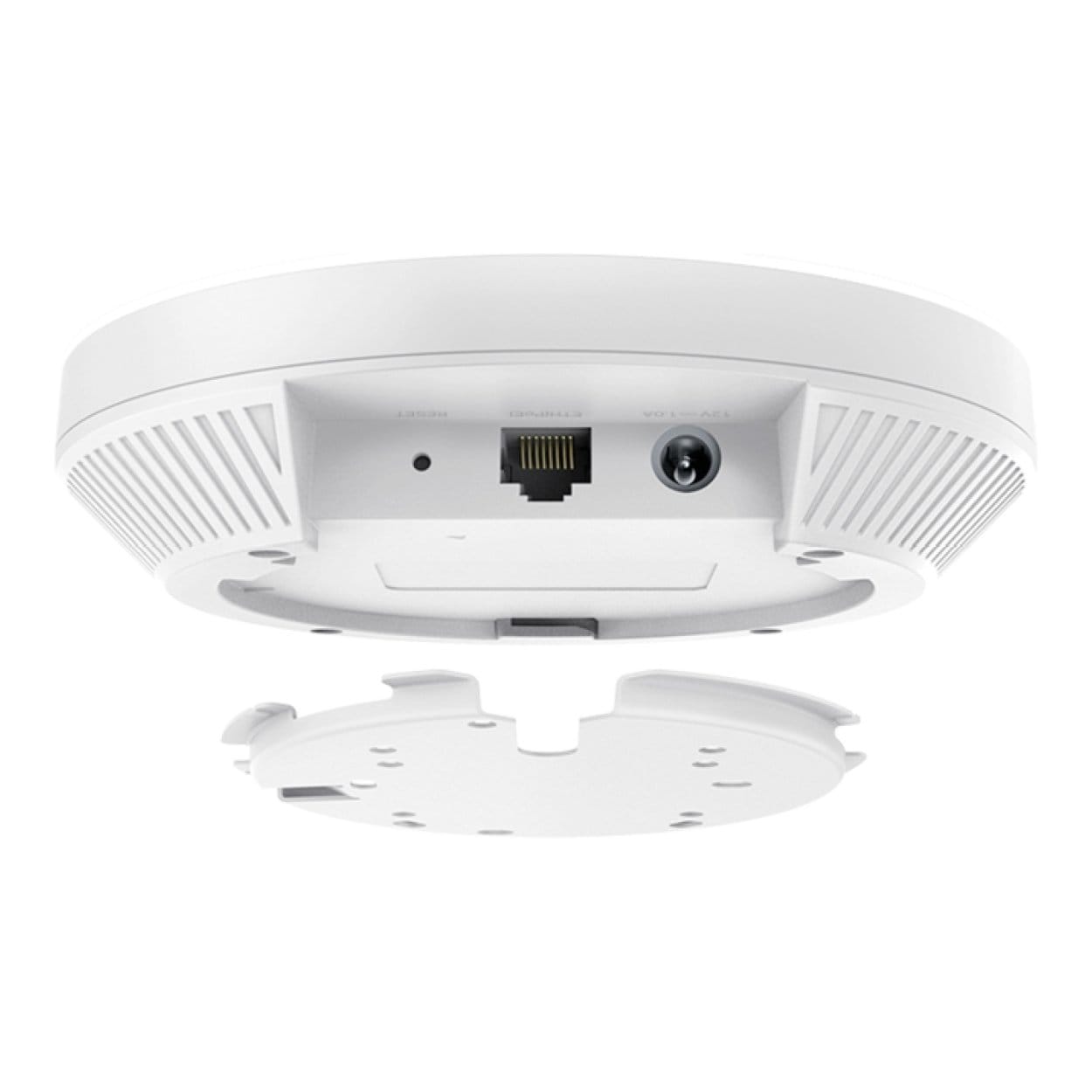

EAP650

nn

nn

Technical Specifications:

nn

Hardware Features

nn

Interface
n1 × Gigabit Ethernet (RJ-45) Port (Supports 802.3at PoE And Passive PoE)

nn

Button
nReset

nn

Power Supply

nn

n
• 802.3at PoE

n

• 48 V Passive PoE (PoE Adapter Included)

n

nn

Maximum Power Consumption

nn

n
• EU: 12.5 W (802.3at PoE Or Passive PoE)

n

• US: 14.7 W (802.3at PoE Or Passive PoE)

n

nn

Antenna

nn

n
• 2.4 GHz: 2 × 4 dBi

n

• 5 GHz: 2 × 5 dBi

n

nn

Weatherproof Enclosure
nIP67

nn

Mounting Options
nPole Mount
nWall Mount (Kits Included)

nn

Dimensions (W × D × H)
n280.4 × 106.5 × 56.8 mm (Without Antenna And Mounting Kit)

nn

Wireless Features

nn

Concurrent Clients
n250+

nn

Wireless Standards
nIEEE 802.11ax/ac/n/g/b/a

nn

Frequency
n2.4 GHz
n5 GHz

nn

Signal Rate

nn

n
• 802.11ax: 8 Mbps To 1201 Mbps (MCS0–MCS11, NSS = 1 To 2, HE20/40/80)

n

• 802.11ac: 6.5 Mbps To 1083.3 Mbps (MCS0–MCS9, NSS = 1 To 2, VHT20/40/80)

n

• 802.11n: 6.5 Mbps To 300 Mbps (MCS0–MCS15, HT20/40)

n

• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

n

• 802.11b: 1, 2, 5.5, 11 Mbps

n

• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

n

nn

Wireless Functions

nn

n
• 1024-QAM

n

• 4 × Longer OFDM Symbol

n

• OFDMA

n

• Multiple SSIDs (Up To 16 SSIDs, 8 Per Band)

n

• Enable/Disable Wireless Radio

n

• Automatic Channel Assignment

n

• Transmit Power Control (Adjustable In dBm)

n

• QoS (WMM)

n

• MU-MIMO

n

• Omada Mesh

n

• Seamless Roaming

n

• Band Steering

n

• Load Balance

n

• Airtime Fairness

n

• Beamforming

n

• Rate Limit

n

• Reboot Schedule

n

• Wireless Schedule

n

• Wireless Statistics Based On SSID/AP/Client

n

nn

Wireless Security

nn

n
• Captive Portal Authentication

n

• Access Control

n

• Wireless MAC Address Filtering

n

• Wireless Isolation Between Clients

n

• SSID To VLAN Mapping

n

• Rogue AP Detection

n

• 802.1X Support

n

• WEP

n

• WPA-Personal/Enterprise

n

• WPA2-Personal/Enterprise

n

• WPA3-Personal/Enterprise

n

nn

Transmission Power

nn

n
• CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP)

n

• FCC: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz)

n

nn

Management Features

nn

Omada App Support
nYes

nn

Centralized Management

nn

n
• Omada Cloud-Based Controller

n

• Omada Hardware Controller (OC300)

n

• Omada Hardware Controller (OC200)

n

• Omada Software Controller

n

nn

Cloud Access
nYes (Through Omada Cloud-Based Controller, OC300, OC200, Or Omada Software Controller)

nn

Email Alerts
nYes

nn

Management MAC Access Control
nYes

nn

SNMP Support
nv1
nv2c

nn

System Logging
nLocal / Remote Syslog

nn

SSH Support
nYes

nn

Web-Based Management
nYes

nn

L3 Management
nYes

nn

Multi-Site Management
nYes

nn

Management VLAN
nYes

nn

Zero-Touch Provisioning
nYes (Requires Omada Cloud-Based Controller)

nn

System Requirements

nn

Microsoft Windows XP
nMicrosoft Windows Vista
nMicrosoft Windows 7
nMicrosoft Windows 8
nMicrosoft Windows 10
nMicrosoft Windows 11
nLinux

nn

Environmental

nn

Operating Temperature
n-30°C To 70°C

nn

Storage Temperature
n-40°C To 70°C

nn

Operating Humidity
n10% To 90% RH, Non-Condensing

nn

Storage Humidity
n5% To 90% RH, Non-Condensing

nn

Certifications

nn

Compliance Certifications
nCE
nFCC
nRoHS

nn

nn

OC200

nn

nn

Hardware Features

nn

Interface
n10/100Mbps Ethernet Port × 2
nUSB 2.0 Port × 1
nMicro USB Port × 1

nn

Power Supply
n802.3af/at PoE or Micro USB (DC 5V, Minimum 1A)

nn

Dimensions (W x D x H)
n3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)

nn

Features

nn

Wireless Function
nL3 Management
nMulti-SSID
nLoad Balance
nBand Steering
nAirtime Fairness
nBeamforming
nRate Limit
nWireless Schedule
nQoS

nn

Wireless Security
nCaptive Portal Authentication
nAccess Control
nWireless MAC Address Filtering
nWireless Isolation Between Clients
nSSID to VLAN Mapping
nRogue AP Detection

nn

AP Management
nAutomatic Discovery
nUnified Configuration
nReboot Schedule
nBatch Firmware Upgrade
nLED ON/OFF

nn

Authentication
nCaptive Portal

nn

Management Features

nn

Omada App
nYes

nn

Centralized Management
nUp to 100 Omada access points, 20 JetStream switches, and 10 Omada routers
nUp to 1,000 Clients

nn

Cloud Access
nYes

nn

L3 Management
nYes

nn

Multi-site Management
nYes

nn

Additional Management Features
nAutomatic Device Discovery
nBatch Configuration
nBatch Firmware Upgrading
nIntelligent Network Monitoring
nAbnormal Event Warnings
nUnified Configuration
nReboot Schedule
nCaptive Portal Configuration

nn

Others

nn

Certification
nCE, FCC, RoHS

nn

System Requirements
nMicrosoft Windows 10, 8, 7, Vista, XP, or MAC OS, NetWare, UNIX, or Linux

nn

Environment
nOperating Temperature: 0℃–40℃ (32℉–104℉)
nStorage Temperature: -40℃–70℃ (-40℉–158℉)
nOperating Humidity: 10%–90% non-condensing
nStorage Humidity: 5%–90% non-condensing

nn

What's in the Box:

nn

n
• 10 x EAP650

n

• 1 x OC200

n

• Quick Installation Guide

n

n
