TP-Link Omada AX5400 Ceiling Mount WiFi 6 Access Point EAP673

TP-Link Omada AX5400 Ceiling Mount WiFi 6 Access Point EAP673

nn

High-End Business WiFi 6 to Power Up Your Business
nAX5400 Ceiling Mount Wi-Fi 6 Access Point
n
nAX5400 WiFi 6 Speed
n4804 Mbps on 5 GHz; 574 Mbps on 2.4 GHz

nn

Features:

nn

n
• Blazing-Fast WiFi 6 Speeds (574 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz).

n

• Integrated into Omada SDN, supporting centralized cloud Management, ZTP^*, and more.

n

• 160 MHz Channel double the data at peak transmission times on a single stream.

n

• Advanced features: Supports seamless roaming^§,Omada Mesh^§, and more.

n

• Supports both 802.3at PoE+ and DC (adapter not included) power supply for flexible installations.

n

nn

nn

High-Efficiency WiFi 6
nMore connected devices can enjoy faster speeds
n
nCentralized Cloud Management
nManage the whole network locally or from the cloud
n
n2.5GE Wired Performance
nBoosts overall throughput with a 2.5 Gbps Ethernet port
n
n160 MHz Channel
nDouble the data at peak transmission times on a single stream with HE160
n
nAuto Channel Selection and Power Adjustment
nOptimize overall performance by reducing WiFi interference
n
nOmada Mesh Technology
nMore flexible and convenient wireless deployment§
n
nSeamless Roaming
nUninterrupted streaming when moving between APs§
n
nPoE+ Powered
nSupports both DC (adapter not included) and 802.3at PoE+ for flexible installations
n
nDesigned for Business Environments
nRequiring High-Performance WiFi
n
nHospitality
nHigh-quality and full coverage Guest WiFi
n
nEducation
nHigh-security WiFi to connect more devices
n
nShopping Mall
nSeamless marketing WiFi coverage to boost business
n
nOffice
nStable, seamless, and high-security WiFi coverage
n
nMeeting Room
nFaster streaming, downloading, video conferencing, and more
n
nHigh-End Business Wi-Fi 6 Bring Real Power to Your Business
nWiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.
n
nBlazing-Fast AX5400 Wi-Fi 6 Speeds
nHigh-end business WiFi 6 with speeds up to 5378 Mbps brings 2.6-time speeds than WiFi 5.
n
nSeamless Integration into Omada SDN
nThe Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.
n
nEasy Deployment & Higher Performance by Omada Mesh
n
nEasy Pairing, Less Wiring
nWith Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
n
nOptimized Network Performance
nIntelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.
n
nAlways Stay Smooth with Fast Roaming
nEnsures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
n
nBoosted Network Security and Efficiency
n
nSecure Guest Network with Up to 16 SSIDs
nGuest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.
n
nBoost Business with SMS Login
nCaptive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.
n
nWPA3 for Worry-Free Open Public Networks
nWith advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.
n
nBand Steering
nAutomatically moves dual band devices onto the wider 5GHz band for faster connections.
n
nLoad Balance
nEnsures large numbers of users have smooth network experiences in high-density business networks
n
nAirtime Fairness
nIncreases average network throughput in heavily congested environments

nn

nn

Technical Specifications:

nn

Hardware Features

nn

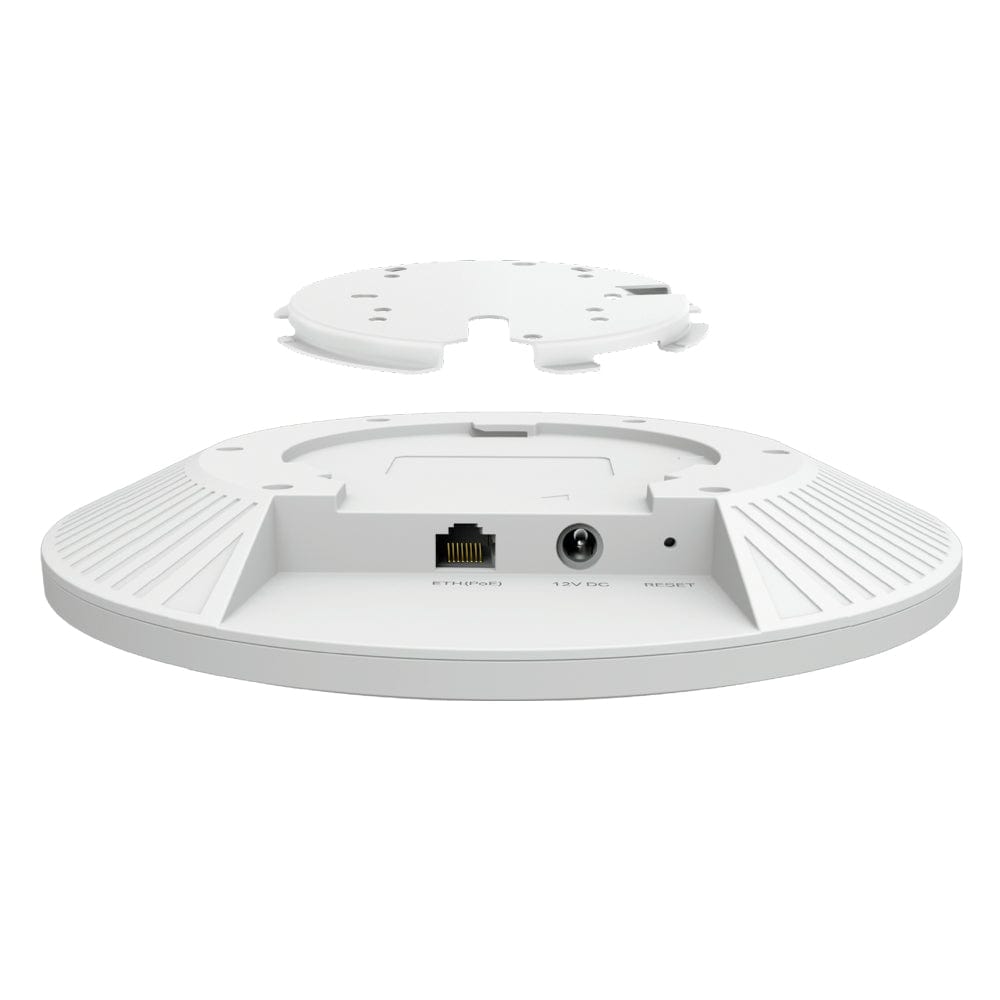

Interface
n1 × 2.5 Gigabit Ethernet (RJ-45) Port (Supports IEEE 802.3at PoE)

nn

Button
nReset

nn

Power Supply

nn

n
• 802.3at PoE

n

• 12 V / 2 A DC (Power Adapter Not Included)

n

nn

Maximum Power Consumption

nn

n
• EU: 20.8 W

n

• US: 22.3 W

n

nn

Antenna
nInternal Omni Antennas:

nn

n
• 2.4 GHz: 2 × 4 dBi

n

• 5 GHz: 4 × 5 dBi

n

nn

Bluetooth
nYes

nn

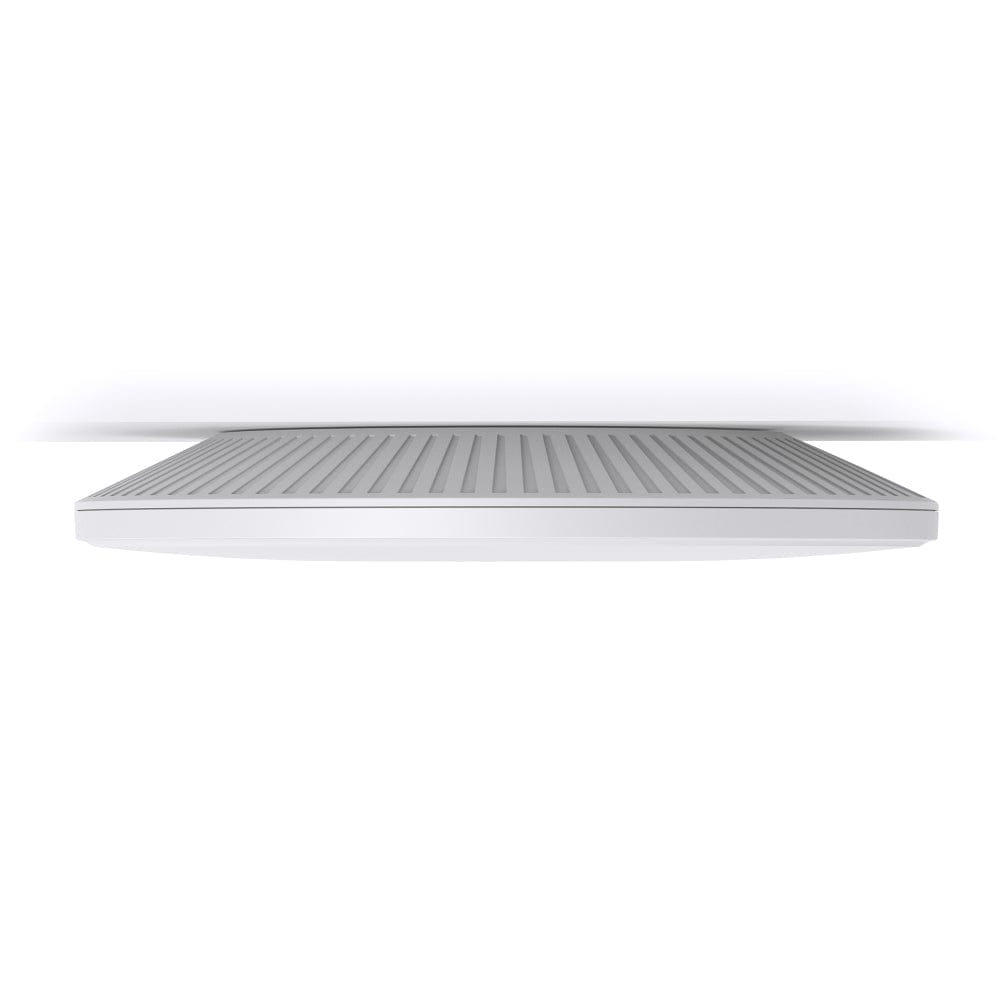

Mounting Options
nCeiling Mount
nWall Mount (Kits Included)

nn

Dimensions (W × D × H)
n220 × 220 × 32.5 mm

nn

Wireless Features

nn

Coverage Area
nUp To 140 m² (1500 ft²)

nn

Concurrent Clients
n250+

nn

Wireless Standards
nIEEE 802.11ax/ac/n/g/b/a

nn

Frequency
n2.4 GHz
n5 GHz

nn

Signal Rate

nn

n
• 5 GHz: Up To 4804 Mbps

n

• 2.4 GHz: Up To 574 Mbps

n

nn

Wireless Functions

nn

n
• 1024-QAM

n

• 4 × Longer OFDM Symbol

n

• OFDMA

n

• Multiple SSIDs (Up To 16 SSIDs, 8 Per Band)

n

• Enable/Disable Wireless Radio

n

• Automatic Channel Assignment

n

• Transmit Power Control (Adjustable In dBm)

n

• QoS (WMM)

n

• MU-MIMO

n

• HE160 (160 MHz Bandwidth)

n

• Seamless Roaming

n

• Omada Mesh

n

• Band Steering

n

• Load Balance

n

• Airtime Fairness

n

• Beamforming

n

• Rate Limit

n

• Reboot Schedule

n

• Wireless Schedule

n

• Wireless Statistics Based On SSID/AP/Client

n

nn

Wireless Security

nn

n
• Captive Portal Authentication

n

• Access Control

n

• Wireless MAC Address Filtering

n

• Wireless Isolation Between Clients

n

• SSID To VLAN Mapping

n

• Rogue AP Detection

n

• 802.1X Support

n

• WPA-Personal/Enterprise

n

• WPA2-Personal/Enterprise

n

• WPA3-Personal/Enterprise

n

nn

Transmission Power

nn

n
• CE: < 20 dBm (2.4 GHz, EIRP); < 23 dBm (5 GHz Band 1 & Band 2, EIRP); < 30 dBm (5 GHz Band 3, EIRP)

n

• FCC: < 25 dBm (2.4 GHz); < 28 dBm (5 GHz)

n

nn

Management Features

nn

Omada App Support
nYes

nn

Centralized Management

nn

n
• Omada Hardware Controller (OC300)

n

• Omada Hardware Controller (OC200)

n

• Omada Software Controller

n

• Omada Cloud-Based Controller

n

nn

Cloud Access
nYes (Requires OC300, OC200, Omada Cloud-Based Controller, Or Omada Software Controller)

nn

Email Alerts
nYes

nn

LED On/Off Control
nYes

nn

Management MAC Access Control
nYes

nn

SNMP Support
nv1
nv2c
nv3

nn

System Logging
nLocal / Remote Syslog

nn

SSH Support
nYes

nn

Web-Based Management
nHTTP / HTTPS

nn

L3 Management
nYes

nn

Multi-Site Management
nYes

nn

Management VLAN
nYes

nn

Zero-Touch Provisioning
nYes (Requires Omada Cloud-Based Controller)

nn

System Requirements

nn

Microsoft Windows XP
nMicrosoft Windows Vista
nMicrosoft Windows 7
nMicrosoft Windows 8
nMicrosoft Windows 10
nMicrosoft Windows 11
nLinux

nn

Environmental

nn

Operating Temperature
n0°C To 40°C

nn

Storage Temperature
n-40°C To 70°C

nn

Operating Humidity
n10% To 90% RH, Non-Condensing

nn

Storage Humidity
n5% To 90% RH, Non-Condensing

nn

Certifications

nn

Compliance Certifications
nCE
nFCC
nRoHS

nn

What's in the Box:

nn

n
• EAP673

n

• Ceiling / Wall Mounting Kits

n

• Installation Guide
