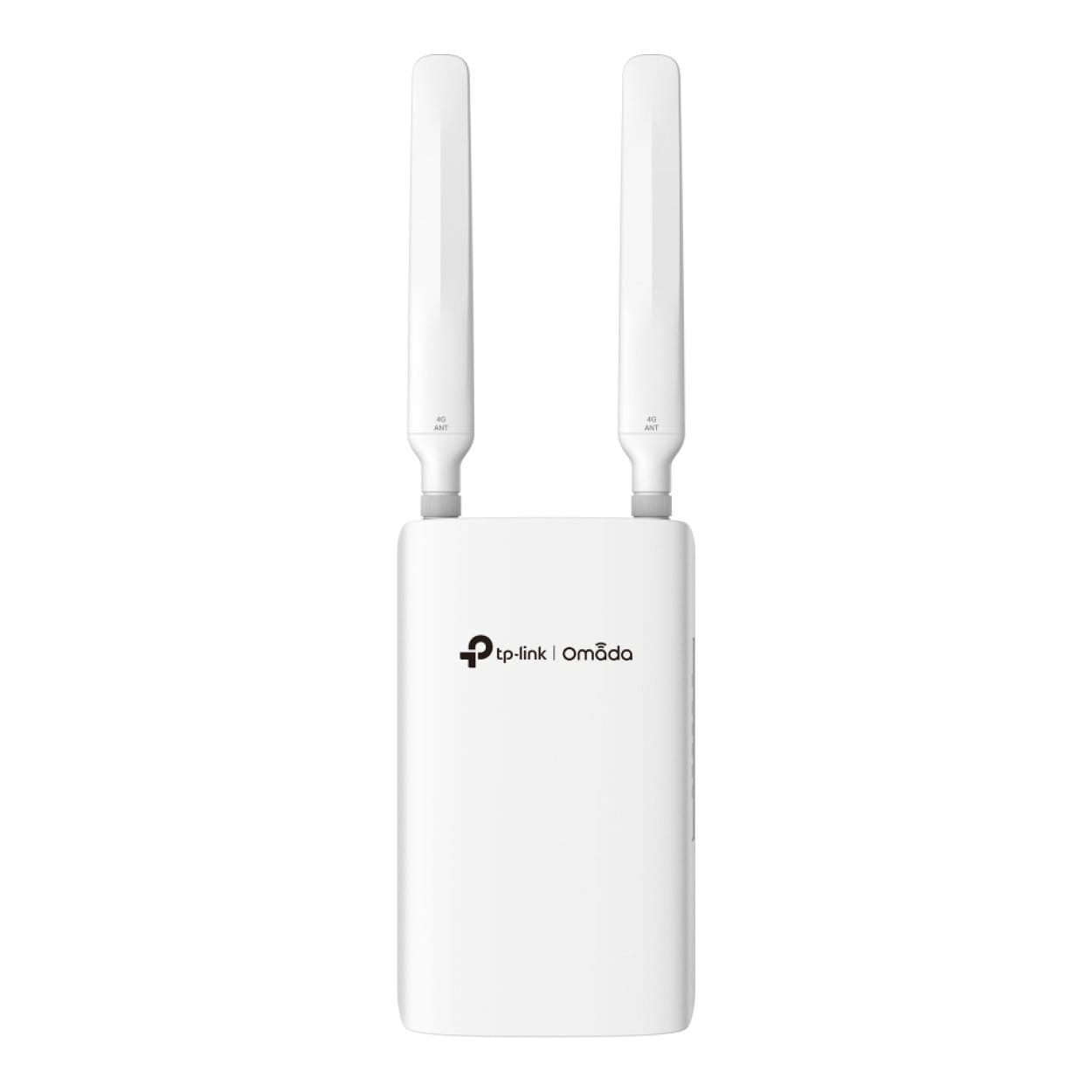

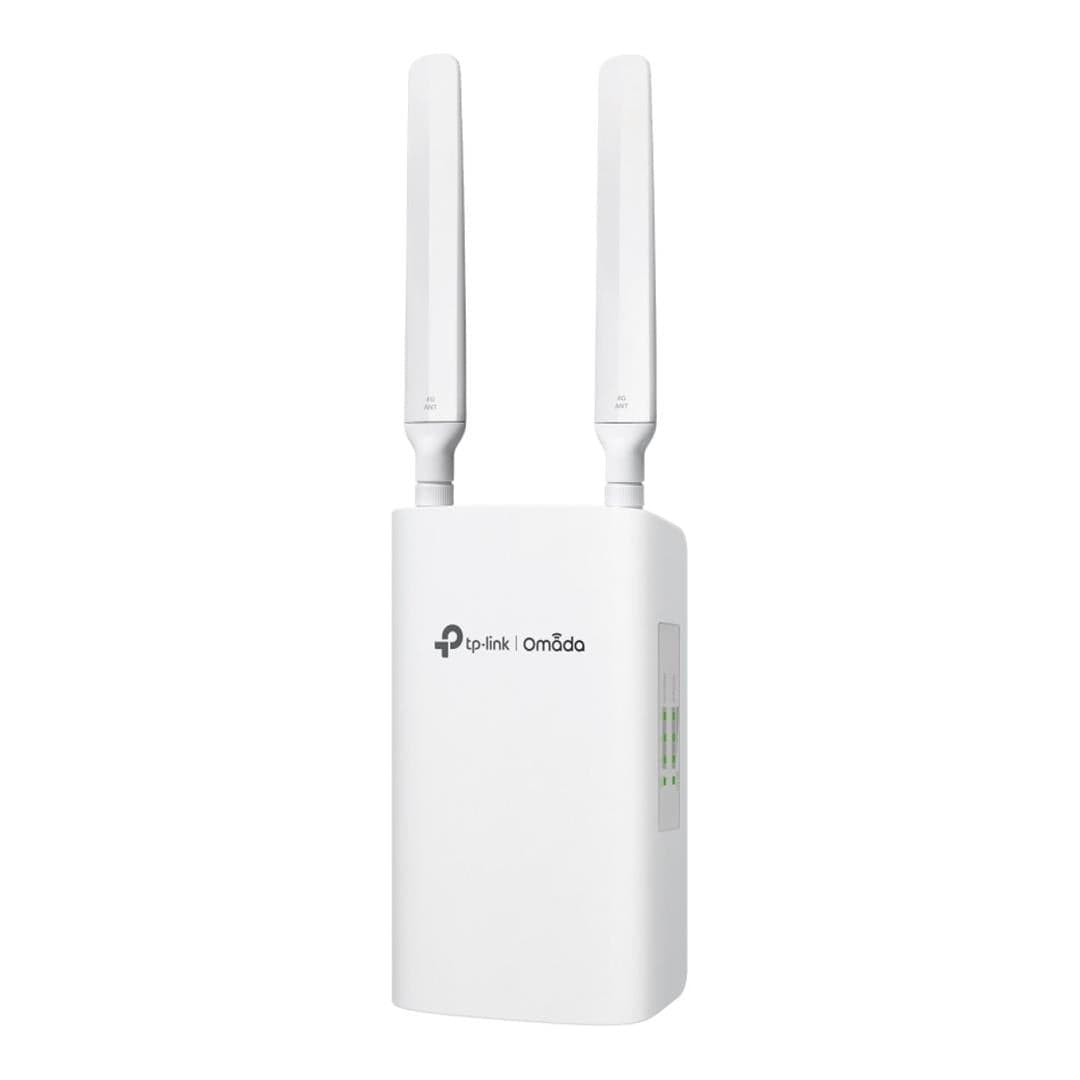

TP-Link Omada ER703WP 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor Gateway

TP-Link Omada ER703WP 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor Gateway

nn

All-in-one Device

nn

Combines 4G Internet access, Wi-Fi 6 wireless technology and 3 Gigabit PoE in/out ports all in one device, and automatic back up and load balancing between 4G and wired WAN can be reached. Enjoyed a powerful and versatile gateway with easy deployment.

nn

Features:

nn

n
• 4G+ Cat6 up to 300 Mbps*

n

• AX3000 Wi-Fi 6 with 2402 Mbps on 5GHz and 574 Mbps on 2.4GHz^†#n

n

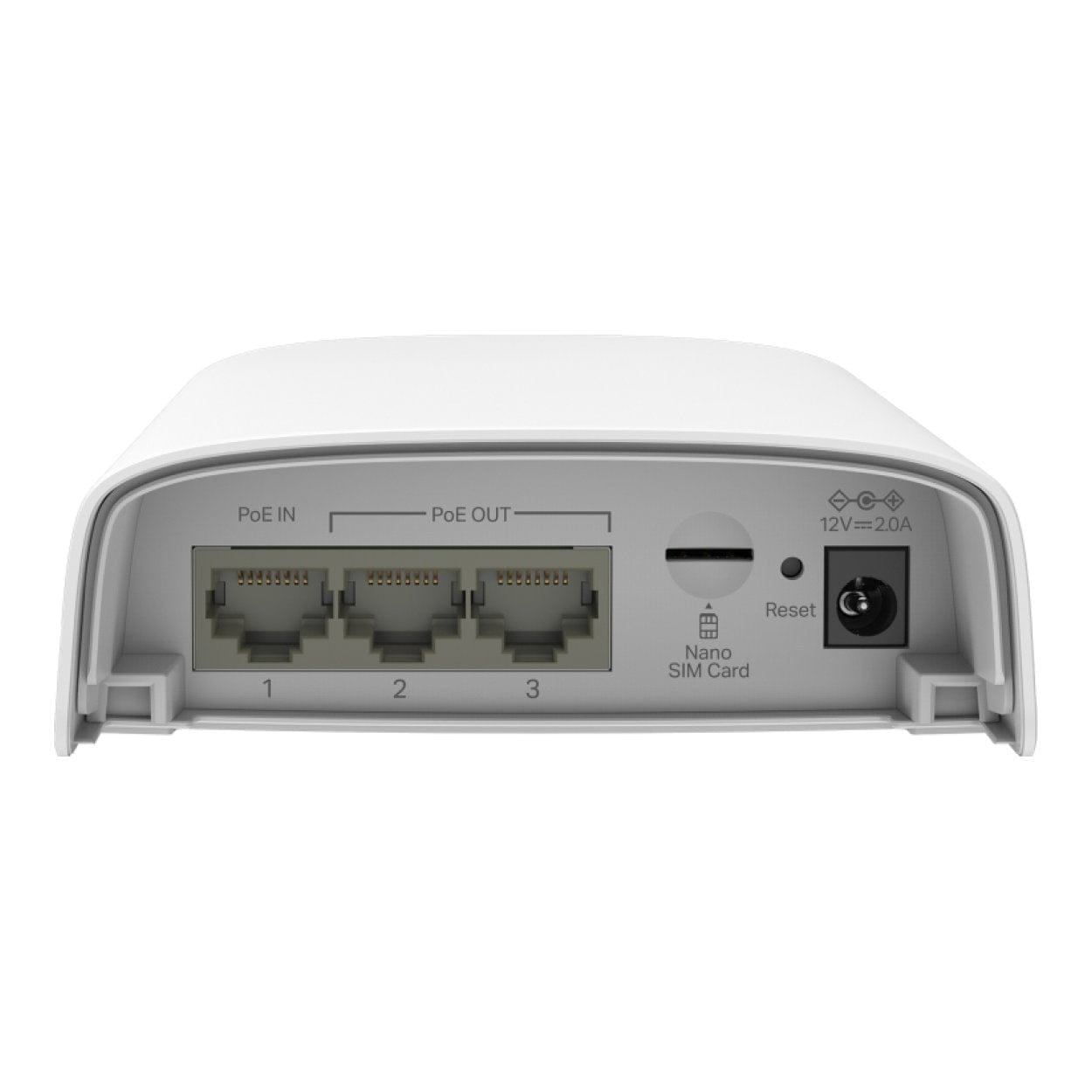

• 3 × Gigabit WAN/LAN Ports (2 × PoE Out, 1 × PoE In)

n

• 1 × Nano SIM Card Slot

n

• 802.3at/bt PoE or 12V/2A DC Power Supply

n

• 4G and Ethernet WAN Auto Backup with Load Balancing

n

• IPSec/L2TP/PPTP/OpenVPN/GRE/WireGuard/SSL VPN^§n

n

• Centralized Management

n

• IP55 Weatherproofing

n

nn

nn

Specially Designed Weatherproof Enclosure for Outdoors

nn

Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the gateway against harsh outdoor conditions.

nn

Multiple Power Supply Options

nn

Powered by PoE or DC (compatible with solar panels) to overcome mains access limitations.

nn

Plug and Play

nn

Insert a Nano SIM card or connect to an Ethernet WAN Port to get gigabit Wi-Fi. Enjoy hassle-free connect to surveillance cameras via cable or wireless.

nn

Centralized Management

nn

Enables to easy network setup across multiple sites without sending engineer for on-site configuration. Remotely manage via Omada app or web, offering the Essentials version of cloud services for free, reducing maintenance costs for MSP/SI.

nn

Easy Installation

nn

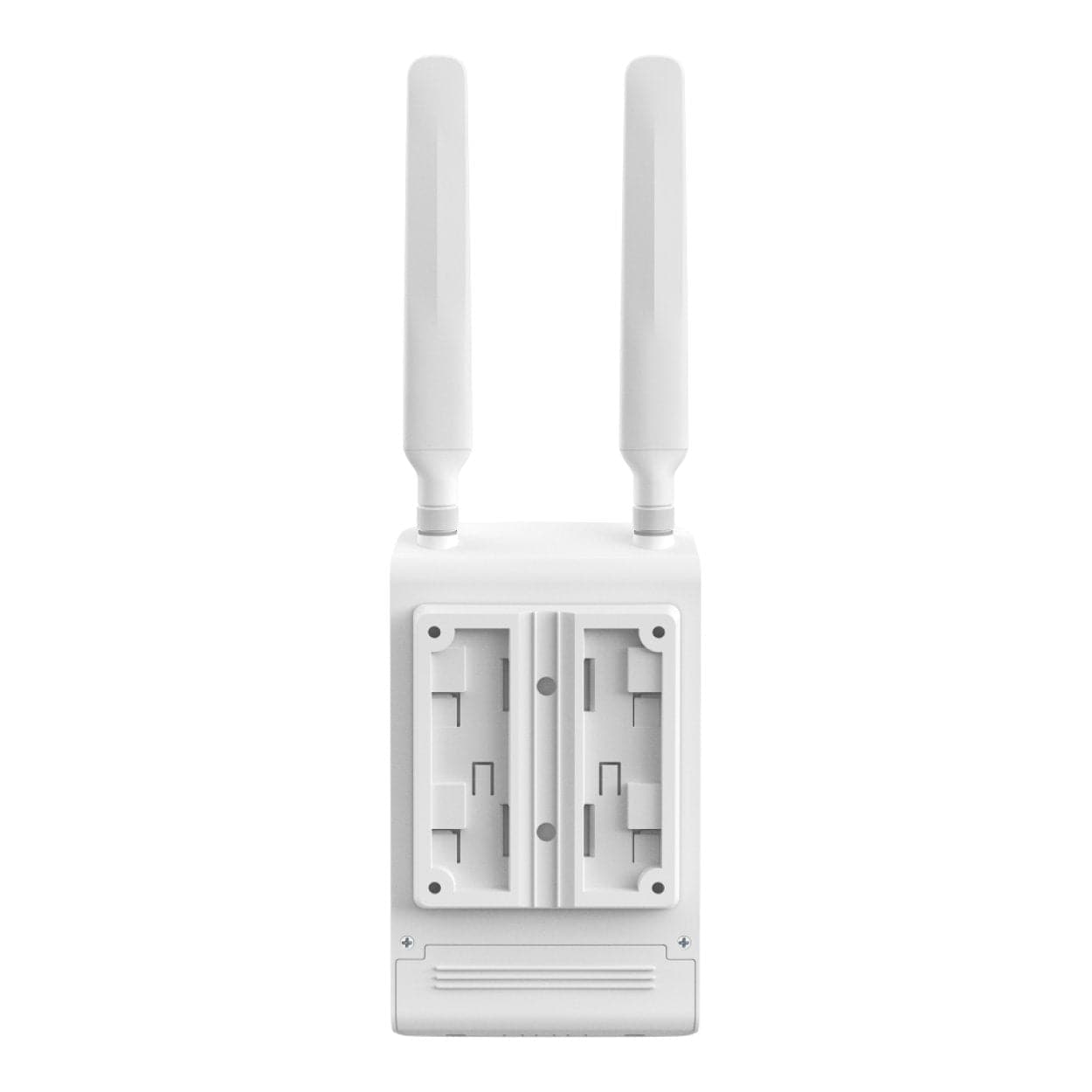

Easy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the gateway flexibly.

nn

nn

Technical Specifications:

nn

4G

nn

Network Type

nn

n
• 4G LTE-FDD: B1 / B3 / B5 / B7 / B8 / B20 / B28 / B32 (2100 / 1800 / 850 / 2600 / 900 / 800 / 700 / 1450 MHz)

n

• 4G LTE-TDD: B38 / B40 / B41 (2600 / 2300 / 2500 MHz)

n

• 3G: DC-HSDPA / HSPA+ / HSDPA / HSUPA / WCDMA: B1 / B3 / B5 / B8 (2100 / 1800 / 850 / 900 MHz)

n

nn

Carrier Aggregation

nn

n
• B1+B1 / B3 / B5 / B7 / B8 / B20 / B28 / B38 / B40 / B41

n

• B3+B3 / B5 / B7 / B8 / B20 / B28 / B38 / B40 / B41

n

• B5+B5 / B7 / B38 / B40 / B41

n

• B7+B7 / B8 / B20 / B28 / B32

n

• B8+B32 / B38 / B40 / B41

n

• B20+B32 / B38 / B40

n

• B28+B32 / B38 / B40 / B41

n

• B38+B38

n

• B40+B40

n

• B41+B41

n

nn

SIM Type

nn

n
• 1 × Nano SIM Card

n

nn

Frequency

nn

n
• Downlink: 300 Mbps

n

• Uplink: 50 Mbps

n

nn

Security

nn

DPI
nApplication Control via DPI / Updated App Library

nn

Access Control
nSource/Destination IP-Based Access Control

nn

Filtering

nn

n
• Web Group Filtering

n

• URL Filtering

n

• Web Security

n

nn

ARP Inspection

nn

n
• Sending GARP Packets

n

• ARP Scanning

n

• IP-MAC Binding

n

nn

Attack Defense

nn

n
• TCP/UDP/ICMP Flood Defense

n

• Block TCP Scan (Stealth FIN/Xmas/Null)

n

• Block Ping From WAN

n

nn

Hardware Features

nn

Interface

nn

n
• 3 × Gigabit WAN/LAN Ports

n

nn

Network Media

nn

n
• 10BASE-T: UTP Category 3, 4, 5 Cable (Max 100 m), EIA/TIA-568 100Ω STP (Max 100 m)

n

• 100BASE-TX: UTP Category 5, 5e Cable (Max 100 m), EIA/TIA-568 100Ω STP (Max 100 m)

n

• 1000BASE-T: UTP Category 5, 5e, 6 Cable (Max 100 m)

n

nn

Button

nn

n
• Reset Button

n

nn

Power Supply
n802.3at/bt PoE; 12VDC / 2A Power Adapter

nn

Wi-Fi Frequency and Signal Rate

nn

n
• 2.4 GHz: 574 Mbps

n

• 5 GHz: 2402 Mbps (HE160)

n

nn

Flash
n256 MB NAND

nn

DRAM
n512 MB DDR4

nn

LED Indicators

nn

n
• 4G Signal

n

• WLAN

n

• WAN/LAN

n

• SYS

n

nn

Dimensions (W × D × H)
n100.4 × 38.7 × 174.8 mm (Antenna Dimensions Not Included)

nn

Antenna

nn

n
• Wi-Fi: Two 5 GHz 4.0 dBi and 2.4 GHz 2.3 dBi Dual-Band Built-In Antennas

n

• LTE: Two 4.0 dBi Omnidirectional Detachable Antennas

n

nn

Mounting
nPole/Wall Mounting

nn

Max. Power Consumption

nn

n
• 14.5 W Without PoE

n

• 63 W With PoE

n

nn

Performance

nn

DPI Throughput

nn

n
• TCP: 1131 Mbps

n

• UDP: 974 Mbps

n

nn

GRE Throughput

nn

n
• Unencrypted: 450.3 Mbps

n

• Encrypted: 277.6 Mbps

n

nn

WireGuard VPN Throughput
n462.8 Mbps

nn

Concurrent Sessions
n120,000

nn

New Sessions per Second
n3,800

nn

NAT Throughput

nn

n
• Static IP: 945.9 Mbps / 950.2 Mbps

n

• DHCP: 947.3 Mbps / 949.4 Mbps

n

• PPPoE: 916.9 Mbps / 946.3 Mbps

n

• L2TP: 878.9 Mbps / 778.9 Mbps

n

• PPTP: 852.2 Mbps / 775.9 Mbps

n

nn

IPsec VPN Throughput

nn

n
• ESP-SHA1-AES256: 568.3 Mbps

n

• ESP-SHA256-AES256: 559.8 Mbps

n

• ESP-SHA384-AES256: 565.6 Mbps

n

• ESP-SHA512-AES256: 550.0 Mbps

n

nn

OpenVPN Throughput
n85.1 Mbps

nn

L2TP VPN Throughput

nn

n
• Unencrypted: 858.7 Mbps

n

• Encrypted: 467.0 Mbps

n

nn

PPTP VPN Throughput

nn

n
• Unencrypted: 876.2 Mbps

n

• Encrypted: 182.6 Mbps

n

nn

SSL VPN Throughput
n86.6 Mbps

nn

Packet Forwarding Rate

nn

n
• 66 Byte Packet: 1,453,489 pps / 1,453,489 pps

n

• 1,518 Byte Packet: 81,275 pps / 81,275 pps

n

nn

Wireless Features

nn

Advanced Features

nn

n
• Seamless Roaming

n

• Mesh (With EAP That Supports Mesh)

n

• OFDMA

n

• Beamforming

n

• MU-MIMO

n

• Rate Limit Based on SSID/Client

n

• Airtime Fairness

n

• Wireless Encryption: WPA/WPA2/WPA3 Personal and Enterprise

n

• Multiple SSIDs: 16 Total (8 per Radio)

n

nn

Guest Network
nSupported

nn

Basic Functions

nn

WAN Connection Type

nn

n
• Static IP

n

• Dynamic IP

n

• PPPoE (Supports MRU Configuration)

n

• PPTP

n

• L2TP

n

nn

MAC Clone
nModify WAN Address

nn

DHCP

nn

n
• DHCP Server

n

• DHCPv6 PD Server (Standalone Mode Only)

n

• DHCP Options Customization

n

• DHCP Address Reservation

n

• Multi-IP Interfaces

n

• Multi-Net DHCP

n

nn

SMS
nReceive / Send SMS

nn

IPv6
nStatic IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / PassThrough / Non-Address Mode

nn

VLAN
n802.1Q VLAN

nn

IPTV
nIGMP v2/v3 Proxy, Custom Mode, Bridge Mode

nn

Advanced Features

nn

Access Control
nIP / Port / Protocol / Domain Name Filtering

nn

Advanced Routing

nn

n
• Static Routing

n

• Policy Routing

n

• RIP

n

• OSPF

n

nn

Bandwidth Control
nIP-Based Bandwidth Control

nn

Load Balance

nn

n
• Intelligent Load Balance

n

• Application Optimized Routing

n

• Link Backup (Timing, Failover)

n

• Online Detection

n

nn

NAT Features

nn

n
• One-to-One NAT

n

• Multi-Net NAT

n

• Virtual Server

n

• Port Triggering

n

• NAT-DMZ

n

• FTP/H.323/SIP/IPSec/PPTP ALG

n

• UPnP

n

nn

Session Limit
nIP-Based Session Limit

nn

VPN

nn

GRE
nStandalone Mode Only

nn

SSL VPN
n50 Tunnels

nn

IPsec VPN

nn

n
• 100 IPsec VPN Tunnels

n

• LAN-to-LAN, Client-to-LAN

n

• DES, 3DES, AES128, AES192, AES256 Encryption

n

• IKE v1/v2

n

• MD5, SHA1, SHA2-384, SHA2-512 Authentication

n

• NAT Traversal (NAT-T)

n

• Dead Peer Detection (DPD)

n

• Perfect Forward Secrecy (PFS)

n

nn

PPTP VPN

nn

n
• PPTP VPN Server

n

• PPTP VPN Client (10)

n

• 50 Tunnels

n

• PPTP With MPPE Encryption

n

nn

L2TP VPN

nn

n
• L2TP VPN Server

n

• L2TP VPN Client (10)

n

• 50 Tunnels

n

• L2TP Over IPsec

n

nn

OpenVPN

nn

n
• OpenVPN Server

n

• OpenVPN Client (5)

n

• 55 OpenVPN Tunnels

n

• Certificate + Account Mode

n

• Full Mode

n

nn

WireGuard VPN

nn

n
• 20 Tunnels

n

nn

Authentication

nn

Web Authentication

nn

n
• No Authentication

n

• Simple Password

n

• Hotspot (Local User / Voucher / SMS / Radius)

n

• External Radius Server

n

• External Portal Server

n

• LDAP

n

nn

Management Features

nn

Omada App
nYes

nn

Centralized Management

nn

n
• Omada Cloud Essentials

n

• Omada Cloud-Based Controller

n

• Omada Hardware Controller (OC300)

n

• Omada Hardware Controller (OC200)

n

• Omada Software Controller

n

nn

Cloud Access
nYes

nn

Service
nDynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)

nn

Maintenance

nn

n
• Web Management Interface

n

• Remote Management

n

• Export and Import Configuration

n

• SNMP v1/v2c/v3

n

• Diagnostics (Ping and Traceroute)

n

• NTP Synchronize

n

• Port Mirroring

n

• CLI (Standalone Mode Only)

n

• Syslog Support

n

nn

Management Functions

nn

n
• Automatic Device Discovery

n

• Intelligent Network Monitoring

n

• Abnormal Event Warnings

n

• Unified Configuration

n

• Reboot Schedule

n

• Captive Portal Configuration

n

nn

Other

nn

Default Network Services

nn

n
• Web Server (HTTP/HTTPS), Port 80/443, Protocol TCP

n

• TDP Server, Port 20003, Protocol UDP

n

• DHCP Server, Port 67, Protocol UDP

n

• DNS, Port 53, Protocol TCP/UDP

n

nn

Certifications
nCE, FCC, RoHS

nn

System Requirements

nn

n
• Microsoft Windows 98SE, NT, 2000, XP, Vista™, Windows 7/8/8.1/10/11

n

• Mac OS, NetWare, UNIX, or Linux

n

nn

Environment

nn

Operating Temperature
n-30°C to 60°C (-22°F to 140°F)

nn

Storage Temperature
n-40°C to 70°C (-40°F to 158°F)

nn

Operating Humidity
n5% to 95% Non-Condensing

nn

Storage Humidity
n5% to 90% Non-Condensing

nn

What's in the Box:

nn

n
• ER703WP-4G-Outdoor

n

• Mounting Kits

n

• Quick Installation Guide
