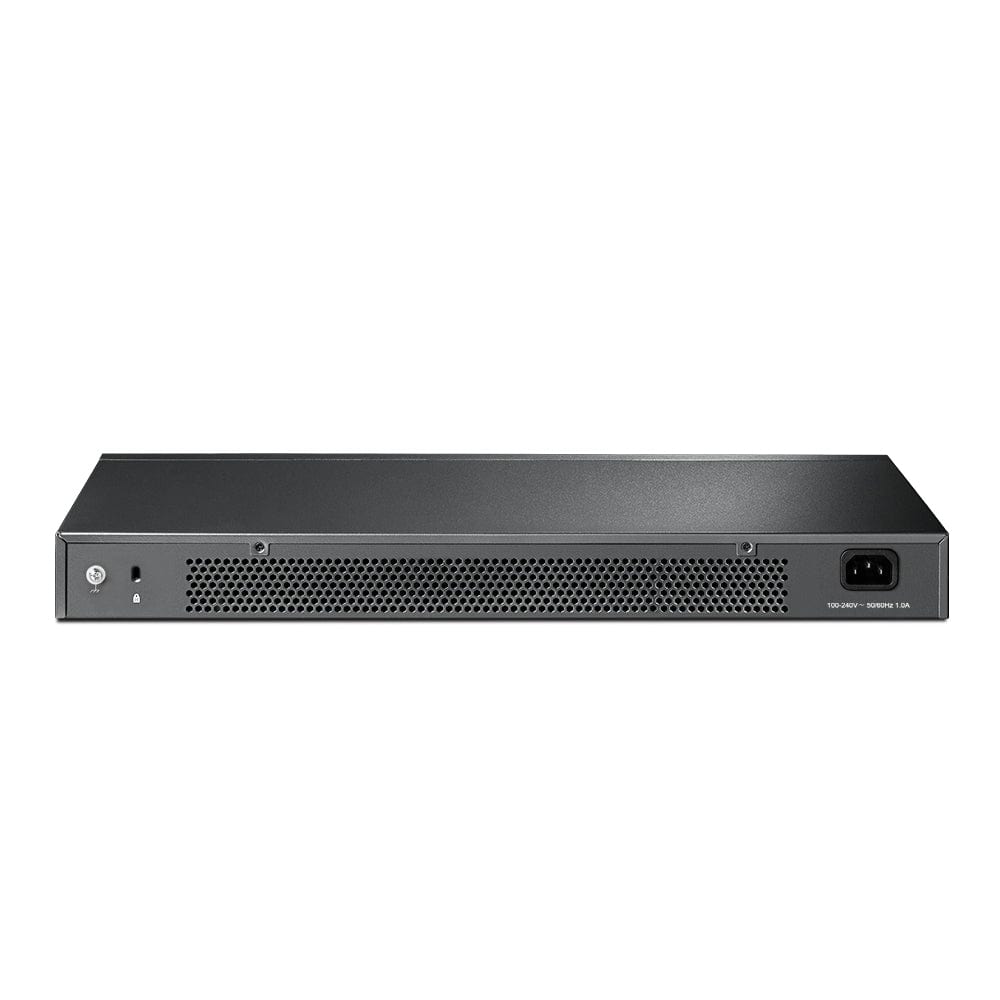

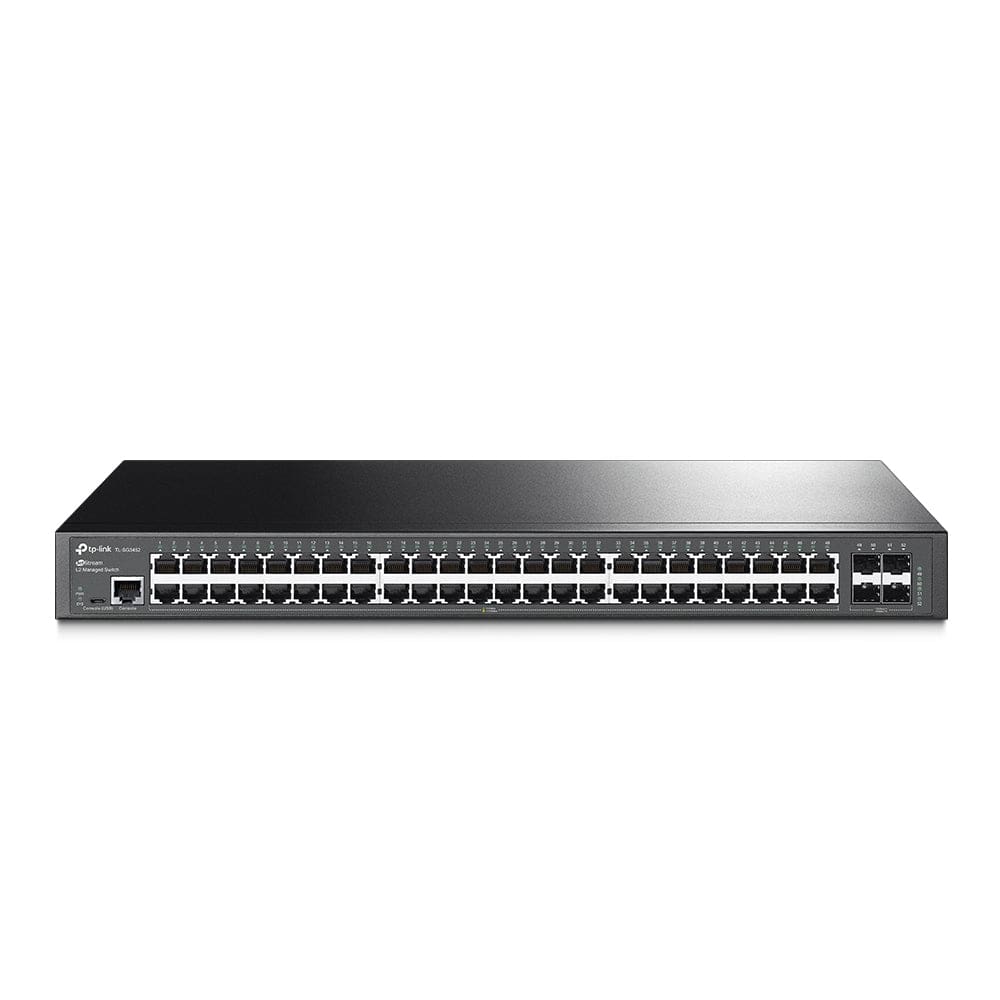

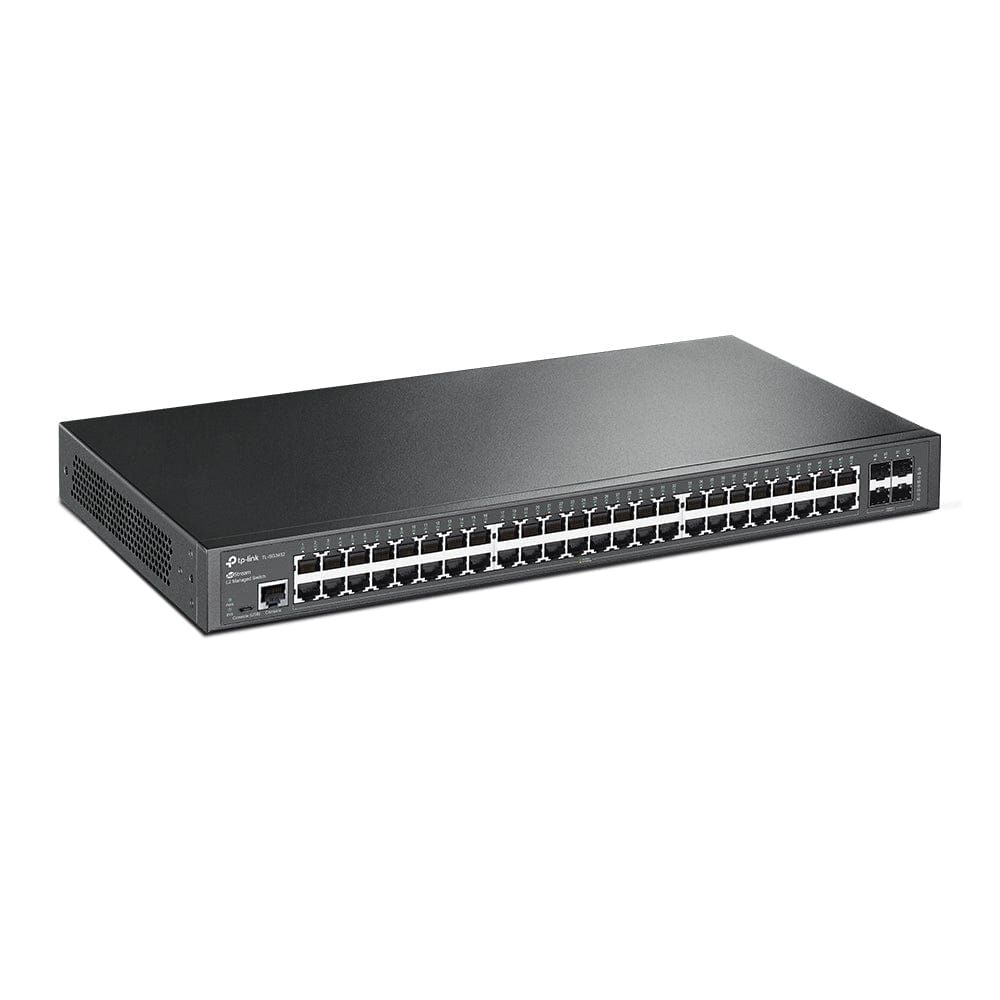

TP-Link TL-SG3452 Jetstream 48-Port Gigabit L2 Managed Switch with 4 SFP Slots

TP-Link Jetstream 48-Port Gigabit L2 Managed Switch with 4 SFP Slots

nn

Convenient Gigabit Switch for a Complete Omada Network

nn

JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Reliable Gigabit Connections 48× Gigabit RJ45 Ports and 4× Gigabit SFP Ports Centralized Cloud Management SDN Solutions Integration for a Highly Efficient Network Advanced L2+ Features L2/L3/L4 QoS, ACL, Static Routing and More Abundant Secure Strategies LAN Area Investment Protection

nn

Software Defined Networking (SDN) with Cloud

nn

Access Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

nn

Advanced L3 Features

nn

An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs. Secure Networking Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided. Enterprise Level Features A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency. Advanced QoS Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply. ISP Features** QinQ, L2PT, PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. Device Link Detection Protocol (DLDP) offers easy monitoring and troubleshooting of Ethernet links. IPv6 Support IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.

nn

Specifications:

nn

n
• TP-Link JetStream 48-Port Gigabit L2 Managed Switch with 4 SFP Slots

n

• Switch type: Managed

n

• Switch layer: L2/L3

n

• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

n

• Basic switching RJ-45 Ethernet ports quantity: 48

n

• Console port: RJ-45/Micro-USB

n

• MAC address table: 16000 entries

n

• Switching capacity: 104 Gbit/s

n

• Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE

n

• Rack mounting

n

• Form factor: 1U
