TP-Link XX530v AX3000 Wi-Fi 6 GPON Wireless Router - Dual-band 2.4GHz and 5GHz Gigabit Ethernet

TP-Link XX530v AX3000 Wi-Fi 6 GPON Wireless Router - Dual-band 2.4GHz and 5GHz Gigabit Ethernet

nn

Next Wave of WiFi 6 for Upgraded Home Connectivity

nn

Features:

nn

n
• Dual-Band WiFi 6: Enjoy smooth streaming, gaming, and fast downloading all at the same time with WiFi speeds up to 3 Gbps across two bands.

n

• Boosted Coverage: High-performance antennas and beamforming technology combine to extend strong, reliable WiFi throughout your home.

n

• More Connections: OFDMA and MU-MIMO technologies increase capacity and enable simultaneous transmission to more devices.

n

• EasyMesh Compatible: Create a smart mesh network with seamless coverage and greater flexibility based on standard mesh technology.

n

• Versatile Internet Access: Supports direct GPON fiber access, Ethernet connections via modem, and 3G/4G internet services through the USB port.

n

• Gigabit Wired Connections: 1× GbE WAN/LAN port and 3× GbE LAN ports provide fast and flexible internet access.

n

• VoIP Calls: Supports multiple VoIP accounts and various call features to surpass traditional landlines.

n

• Enhanced Security: WPA3 encryption, Multi-SSID, and parental controls provide personalized and safer online experiences.

n

• nCompact Fiber Tray Design: Store a redundant fiber cable inside and protect the fiber cable from breaking.

n

• Easy Setup and Use: Simplifies network and WiFi control and management via the powerful Aginet app.

n

• Remote Management: Supports TAUC (TP-Link Aginet Unified Cloud, based on TR-369) along with OMCI, TR-069, TR-098, TR-181, TR-111, and TR-143 protocols.

n

nn

Dual-Band WiFi 6 Up to 3.0 Gbps

nn

Wi-Fi 6 (802.11ax) technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network. Every application feels more fluid with drastically improved WiFi speeds. Both the 2.4 GHz band and 5 GHz band get upgraded to the latest generation—perfect for 4K/8K streaming, online gaming, and fast downloading.

nn

More Connections at High Speed

nn

Easily handle dozens of devices streaming and gaming at the same time. OFDMA and MU-MIMO future-proof your home network by providing greater capacity to connect more devices.

nn

OFDMA

nn

OFDMA separates a single spectrum into multiple units and enables different devices to share one transmission stream, increasing efficiency and reducing latency.

nn

MU-MIMO

nn

Simultaneously transfers data to multiple devices for 2× faster performance.

nn

Extensive WiFi Coverage

nn

High-performance dual-band antennas and beamforming technology combine to adapt WiFi coverage to perfectly fit your home and concentrate signal strength towards every device.

nn

Smart Mesh WiFi with Greater Flexibility

nn

Create a unified mesh WiFi network with other EasyMesh-compatible router or mesh AP for seamless whole home coverage.

nn

Versatile Connectivity

nn

With multiple connection ports, XX530v provides you with a variety of internet connection options. The PON port delivers up to 2.5 Gbps internet access, catering to your high-speed home. The Ethernet WAN/LAN port supports wired connections to modems or switches via Ethernet cabling. A 3G/4G dongle can be attached to the USB port as a backup to always stay connected.

nn

Convenient VoIP Calls over the Internet

nn

XX530v integrates a high-performance phone system. You can connect your analog phone to the router with voicemail storage and various VoIP call features, such as caller ID, call waiting, call holding and call forwarding to surpass traditional landlines.

nn

Gigabit Wired Connections and Fast Media Sharing

nn

The Gigabit Ethernet ports allow you to take full advantage of your broadband speed up to 1 Gbps. Plug your PCs, smart TVs, and game consoles into one of the Gigabit Ethernet LAN ports (including the WAN/LAN port) for reliable wired connections. The USB port can be used to share files, music, and videos within your network at high speeds.

nn

Technical Specifications:

nn

Hardware Features

nn

External Power Supply: 12V / 1.5A

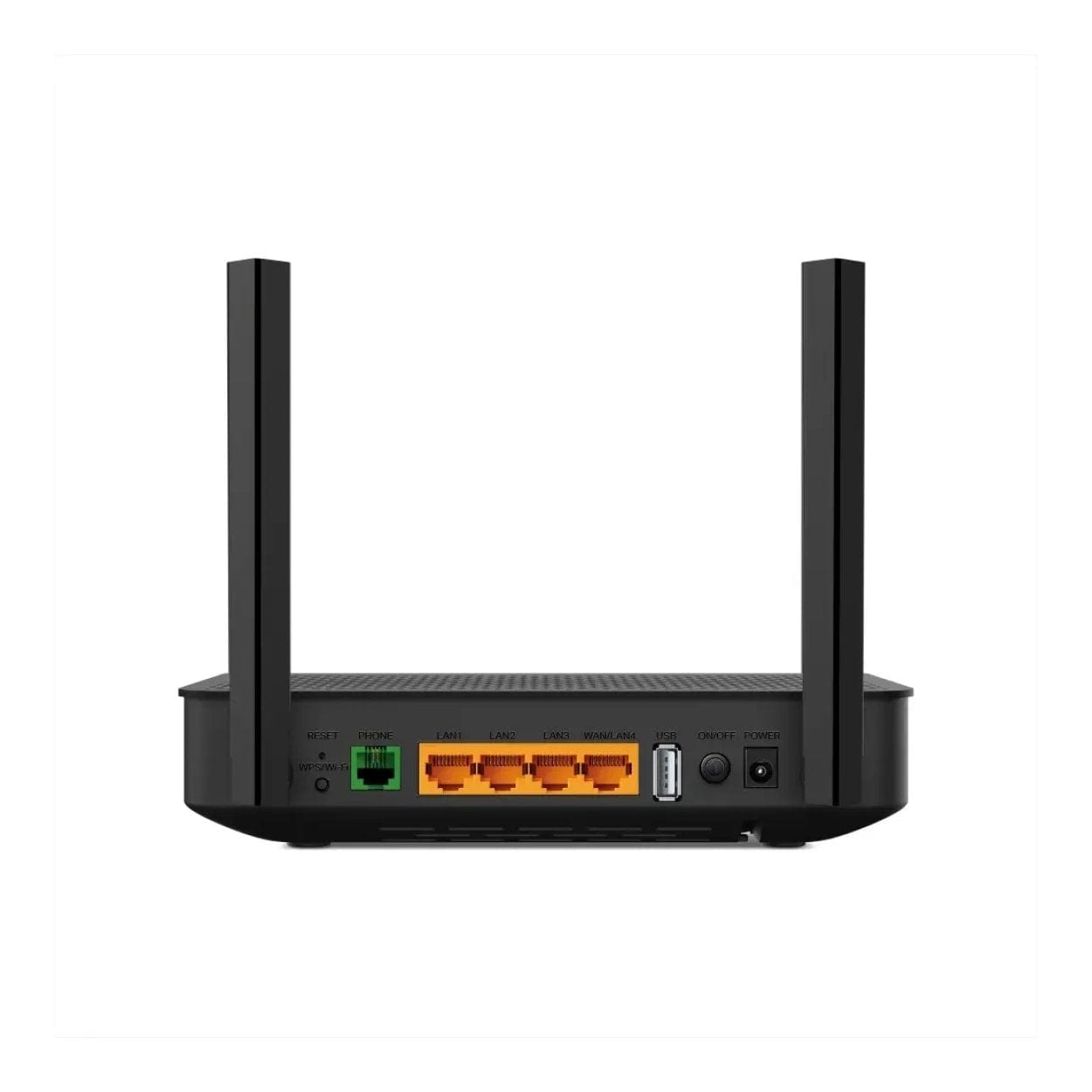

nInterfaces:

nn

n
• 1 × SC/APC GPON Port

n

• 1 × 10/100/1000 Mbps WAN/LAN Port

n

• 3 × 10/100/1000 Mbps LAN Ports

n

• 1 × Phone Port

n

• 1 × USB 2.0 Port

n

nn

Buttons: WPS/Wi-Fi Button, Reset Button, Power On/Off Button

nn

Antenna: 2 × External Dual-Band Antennas + 1 × Internal 5G Antenna

nn

Data Rates: Downstream 2.488 Gbps (GPON); Upstream 1.244 Gbps (GPON)

nn

Wireless Features

nn

Frequency: 2.4 GHz and 5 GHz
nSignal Rate: AX3000
nData Rate: 5 GHz – up to 2402 Mbps (HE160); 2.4 GHz – up to 574 Mbps (HE40)
nWireless Functions: Enable/Disable Wireless Radio, WMM, Wireless Statistics
nWireless Security: WPA/WPA2/WPA3 Encryption
nWireless Standards: IEEE 802.11a/n/ac/ax (5 GHz); IEEE 802.11b/g/n/ax (2.4 GHz)
nMulti-SSID: 2 × 5 GHz, 2 × 2.4 GHz
nWireless Schedule: Supports 2.4 GHz and 5 GHz scheduling
nMesh Technology: EasyMesh compatible; supports 802.11k/v/r
nTransmission Power (CE): <20 dBm (2.4 GHz); <23 dBm (5 GHz)

nn

Software Features

nn

DHCP: Server, Client, Client List, Address Reservation, DHCP Relay
nPort Forwarding: Virtual Server, Port Triggering, DMZ, ALG, UPnP
nQuality of Service: Hardware QoS, Flow Classification
nDynamic DNS: DynDNS, NO-IP
nVPN Pass-Through: PPTP, L2TP, IPSec
nManagement Features:

nn

Local: WebGUI, Aginet App (for end users)

nn

Remote: Aginet ACS, OMCI, TR-069/TR-369, TR-098, TR-181, TR-111, TR-143 (for service providers)

nn

Cloud: TP-Link Aginet Unified Cloud (TAUC)
nSecurity: NAT Firewall, Access Control, MAC/IP/URL Filtering, IP & MAC Binding, DoS Defense (SYN Flooding, Ping of Death)
nProtocols: IPv4, IPv6
nVPN Server: PPTP, IPSec, OpenVPN
nAdvanced Features: Parental Controls, Guest Network, NAT, Port Mapping, Static Routing, DNS Relay, DDNS, IGMP v1/v2/v3

nn

What's in the Box:

nn

n
• n

  1 × GPON Router XX530v

  n

n

• n

  1 × RJ45 Ethernet Cable

  n

n

• n

  1 × Power Adapter

  n

n

• n

  1 × Quick Installation Guide
  n Environment: Operating Temperature 0°C–40°C (32°F–104°F); Storage Temperature -40°C–60°C (-40°F–140°F); Operating Humidity 10%–90% (non-condensing); Storage Humidity 5%–90% (non-condensing)
