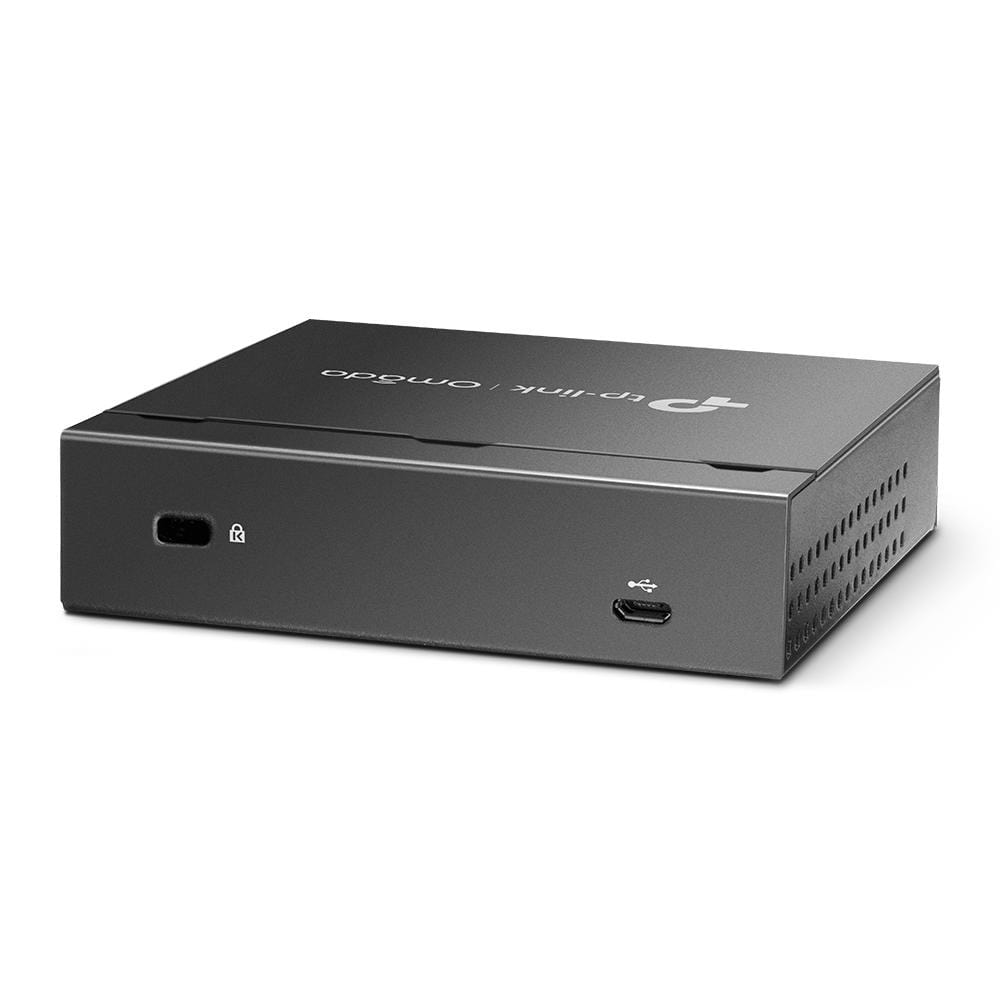

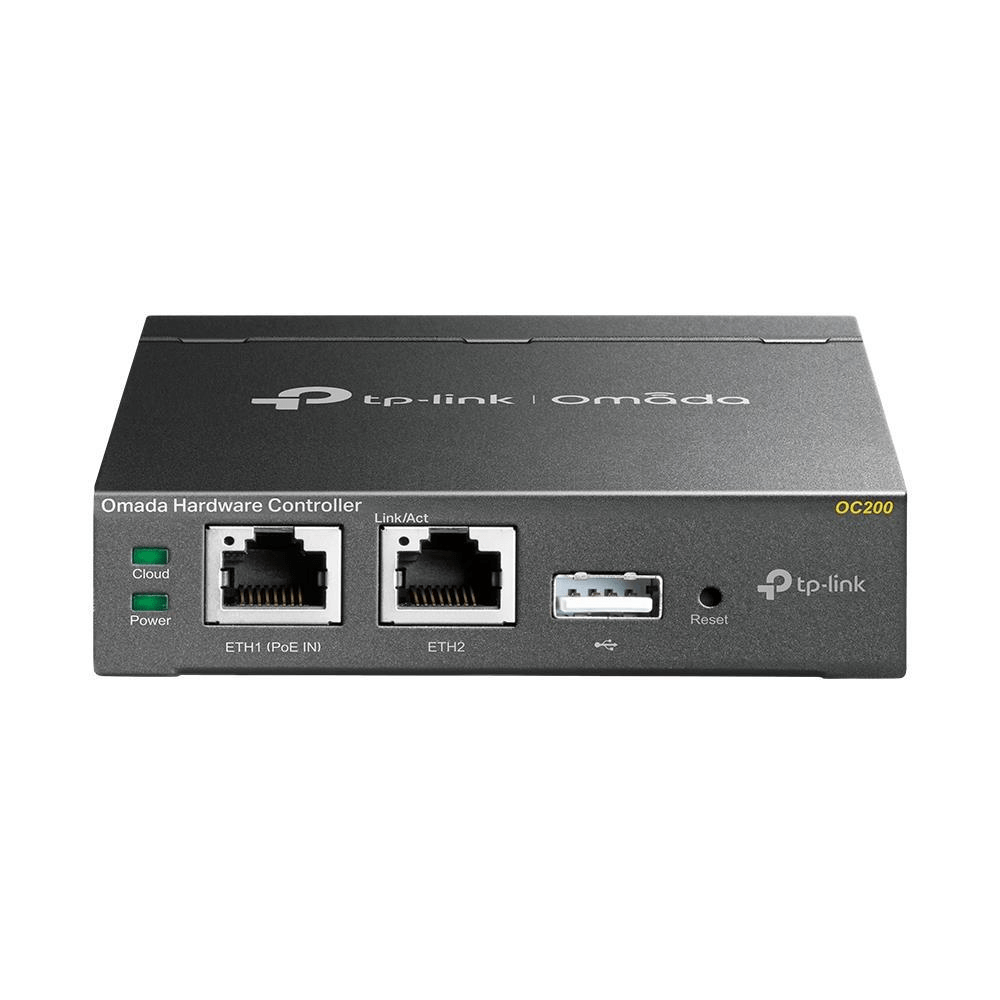

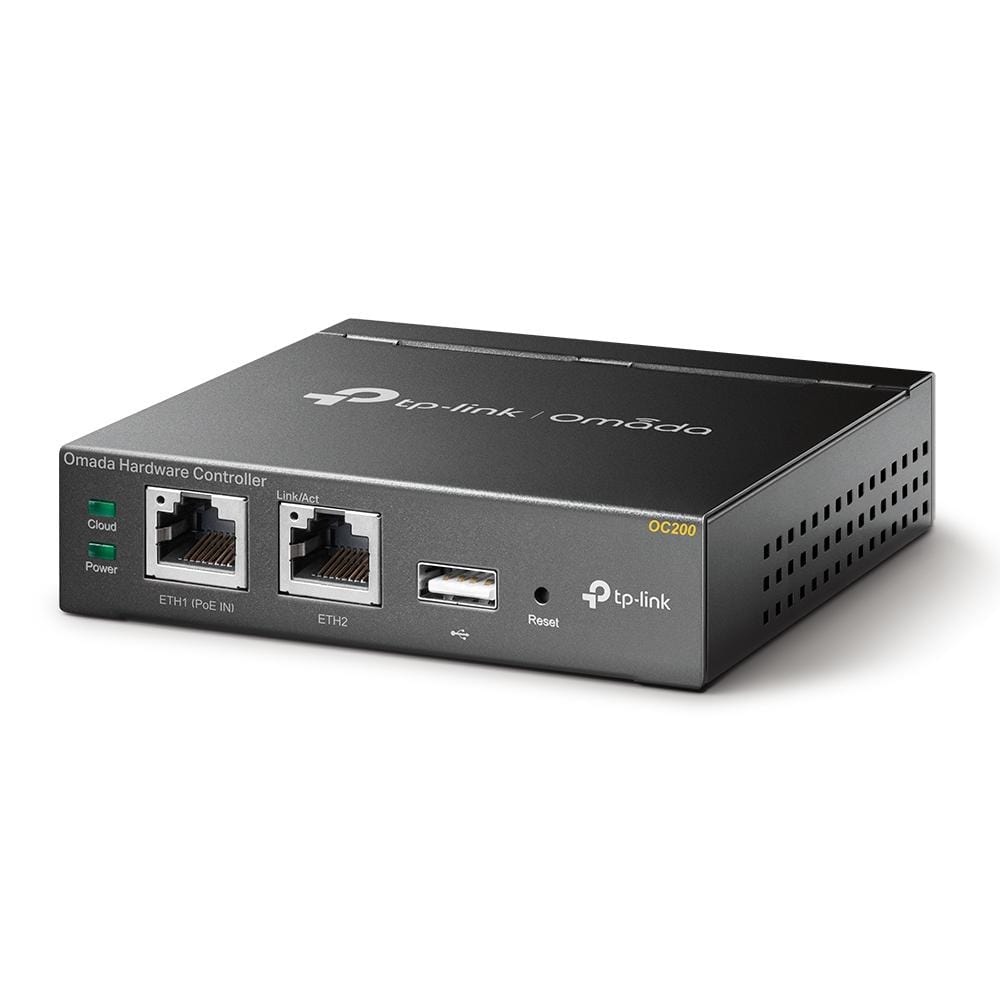

TP-Link OC200 Omada Cloud Controller Gateway/Controller 10/100 Mbits

TP-Link OC200 Omada Cloud Controller Gateway/Controller 10/100 Mbits

Dedicated In Network Centralized Management

The OC200 Omada Cloud Controller delicate to provide centralized management for the whole Omada network. Monitor statistics in real-time, view a graphical analysis of network traffic, create a captive portal, upgrade and reboot your system, and easily scale your network to boost your business.

Features:

• Professional centralized management for Wi-Fi network
• Free cloud access to manage from anywhere, anytime
• PoE (802.3af/802.3at) supported for easy installation
• Industry leading hardware design with powerful chipset, durable metal casing, and USB port for auto backup
• Omada App for a convenient management
• Secure guest network with multiple login options(Facebook Wi-Fi, SMS login, Vourcher)

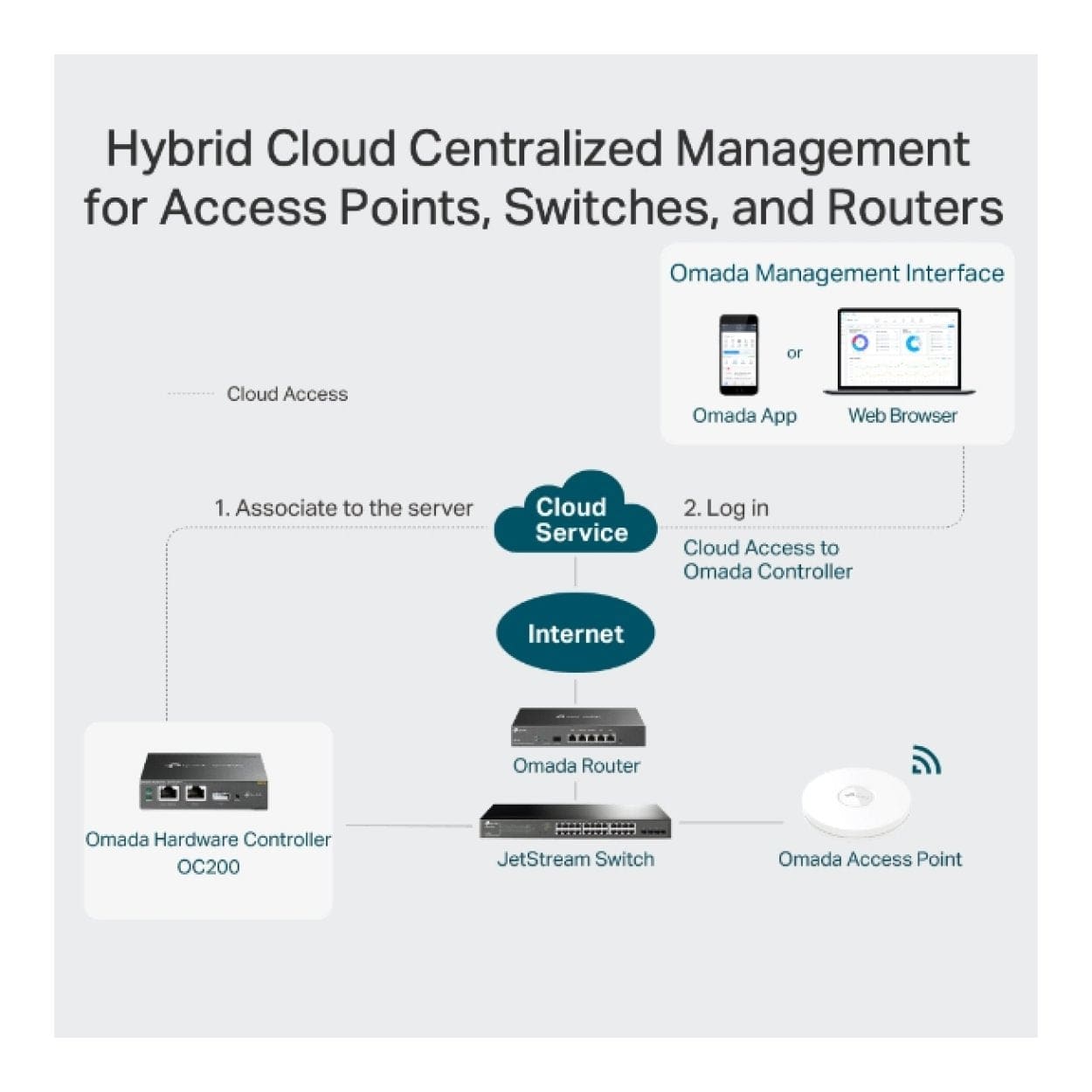

Free Cloud Management – Anywhere, Anytime

Omada offers free cloud access to its centralized management platform. Take your network with you, wherever you go.

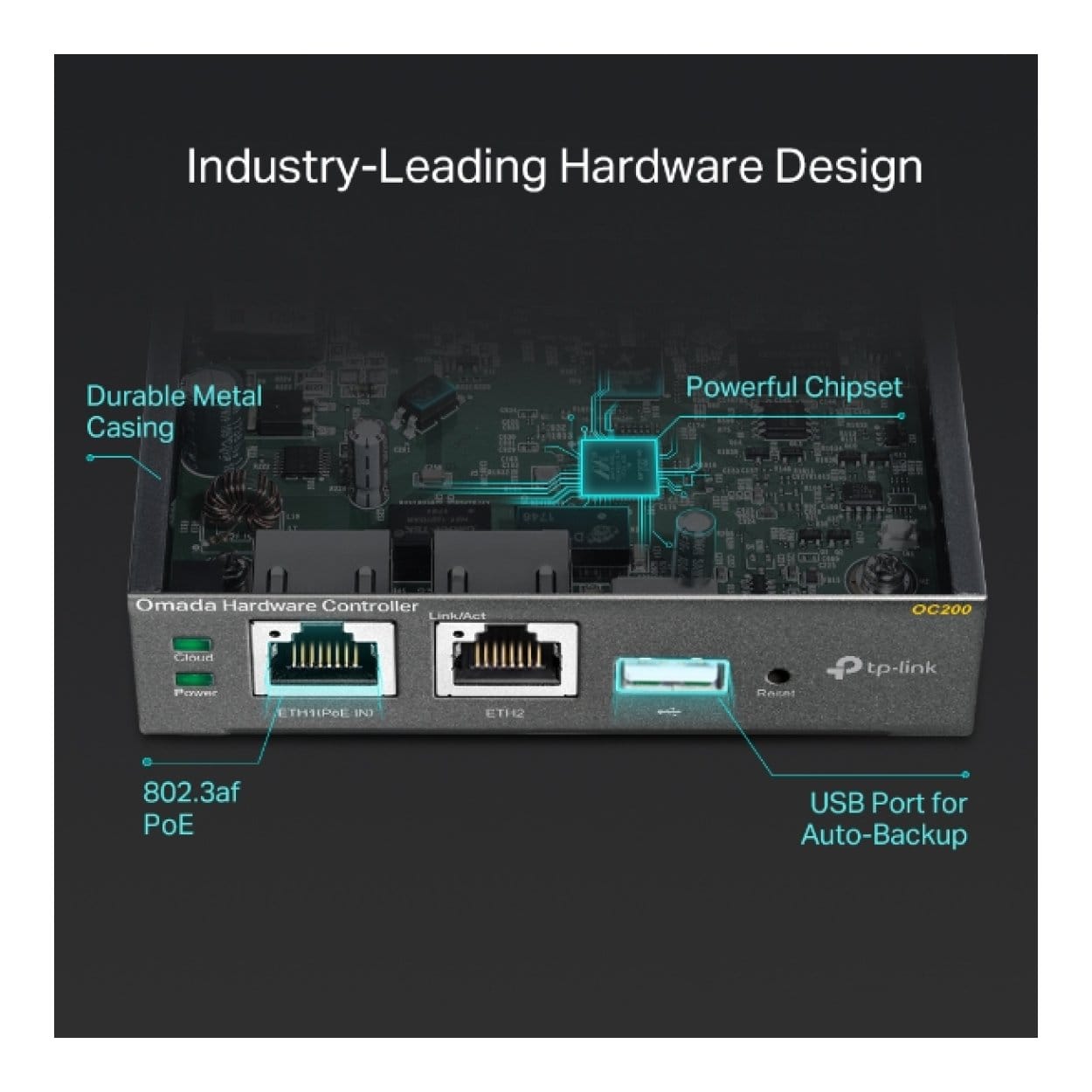

Industry Leading Hardware Design

Equipped with an advanced hardware design and the latest chipset, OC200 has the impressive processing power to support the massive management of your business network.

Guest Network with Facebook Wi-Fi and SMS Login

Visitors have access to secure Wi-Fi with captive portal and wireless isolation technology. Newly added SMS authentication simplifies the connection process, while Facebook authentication raises the social media profile of your business.

Even More Convenient with Omada App

Remotely access and configure the OC200 from the convenience of your smartphone, wherever you are in the world.

Technical Specifications:

Hardware Features

Interface
10/100Mbps Ethernet Port × 2
USB 2.0 Port × 1
Micro USB Port × 1

Power Supply
802.3af/at PoE or Micro USB (DC 5V, Minimum 1A)

Dimensions (W x D x H)
3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)

Features

Wireless Function
L3 Management
Multi-SSID
Load Balance
Band Steering
Airtime Fairness
Beamforming
Rate Limit
Wireless Schedule
QoS

Wireless Security
Captive Portal Authentication
Access Control
Wireless MAC Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection

AP Management
Automatic Discovery
Unified Configuration
Reboot Schedule
Batch Firmware Upgrade
LED ON/OFF

Authentication
Captive Portal

Management Features

Omada App
Yes

Centralized Management
Up to 100 Omada access points, 20 JetStream switches, and 10 Omada routers
Up to 1,000 Clients

Cloud Access
Yes

L3 Management
Yes

Multi-site Management
Yes

Additional Management Features
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration

Others

Certification
CE, FCC, RoHS

System Requirements
Microsoft Windows 10, 8, 7, Vista, XP, or MAC OS, NetWare, UNIX, or Linux

Environment
Operating Temperature: 0℃–40℃ (32℉–104℉)
Storage Temperature: -40℃–70℃ (-40℉–158℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing

What's in the Box:

• Omada Cloud Controller
• OC200
• Quick Installation Guide
• Ethernet Cable
